- mpnC22692
- brandname: CLE-LINE
- manufacturername: CLE-LINE

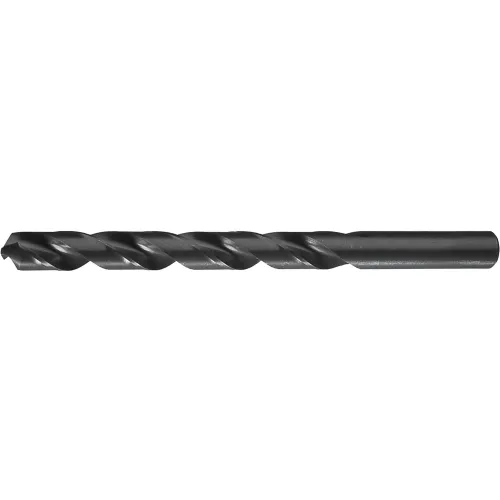

Jobber Bit, 20, High Speed Steel
- Brand: Cle-line
- PartNumber: C22692
- Model: C22692
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1610 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1610" |
| Diameter (Wire/Let) | 20 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black and Gold Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | #20 |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0484 in |
| Drill Size - Decimal In. | 0.161 in |
| Drill Size - Wire | #20 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Black Oxide, Black and . |
| Flute Length | 2-1/8 in, 2.1250", 2 1/. |
| Flute Length (Metric) | 53.97mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 19/32 in |
| Number of Flutes | 2 |
| Overall Length | 3-1/4 in, 3 1/4 in, 3.2. |
| Overall Length (Metric) | 82.55mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 5/32 in |
| Shank Length | 1.1250", 1 1/8 in |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 0.1610", 0.161 in Dia x. |
| Shank Size (Metric) | 4.09mm |
| Shank Type | Straight |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | #20 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545248 | 1.1418 | 12 | 12 | | Cle-Line | | 1.1418 @ 12 |
 | MRO Supply | 6124285 | 1.37 | 37 | 12 | | Cle-Line | | 1.37 @ 37 |
 | Zoro | G1255825 | 1.45 | 1 | 372 | | Cle-Line | 0.01 | 1.45 @ 12 |
 | usmegastore.com | C22692 | 1.63 | 1 | 12 | | Cle-Line | | 1.63 @ 12 |
 | Megadepot | C22692 | 1.66 | 1 | 12 | | Cle-Line | | 1.66 @ 12 |
 | heavydutydepot.com | C22692 | 1.66 | 61 | 12 | | Cle-Line | | 1.66 @ 61 |
 | sustainablesupply.com | C1465145 | 1.77 | 1 | 12 | | Cle-Line | 0.01 | 1.77 @ 12 |
 | Raptor Supplies | AD6THZ | 1.9106685 | 1 | 12 | | CLE-LINE | | 1.9106685 @ 12 |
