- mpnC24353
- brandname: Cle-Line
- manufacturername: Cle-Line

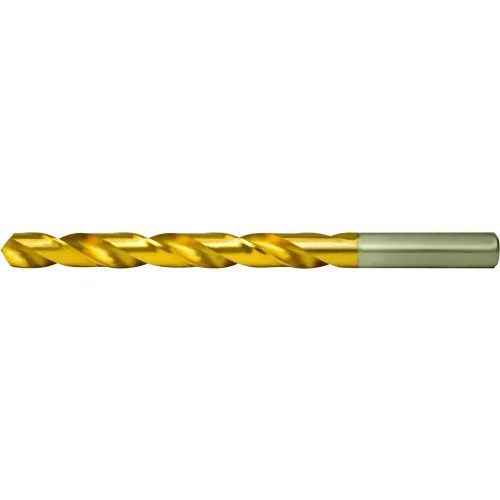

Cle-Line C24353 General Purpose Jobber Length Drill, High Speed Steel, TiN Finish, Straight Shank, 118-Degree Radial Point, 5.50 mm Drill Diameter (Pack of 12)
- Brand: Cle-line
- PartNumber: C24353
- Model: C24353
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2165 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2165" |
| Diameter (Metric) | 5.50mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 5.50 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.065mm |
| Drill Size - Decimal In. | 0.2165 in |
| Drill Size - Metric | 5.5 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | TiN Coated |
| Flute Length | 2.2441", 57 mm, 57.00mm |
| Flute Length (Metric) | 57.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 1 43/64 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 93 mm, 3.6614", 93.00mm |
| Overall Length (Metric) | 93.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Cast Iron, St. |
| Series | 1898T |
| Shank Configuration | Straight |
| Shank Dia. | 5.5 mm |
| Shank Length | 36 mm, 1.4173" |
| Shank Length (Metric) | 36.00mm |
| Shank Size | 0.2165", 5.5 mm Dia x 3. |
| Shank Size (Metric) | 5.50mm |
| Shank Type | Straight |
| Standards | DIN 338 |
| Style | 1898T |
| Surface Condition | TiN |
| Through Coolant (Yes/No) | No |
| Tool Size | 5.50mm, 5.5mm |
