NTN UCFLU-1.7/16M

B01LWMBQ57

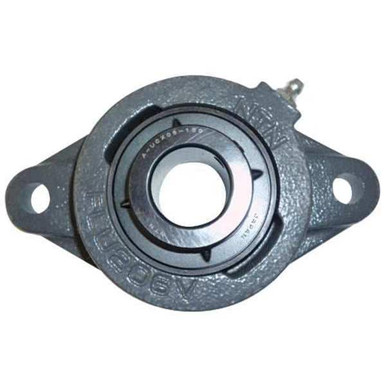

Flange Bearing, 2-Bolt, Ball, 1-7/16" Bore

Flange Bearing, 2-Bolt, Ball, 1-7/16" Borezoom

Attributes

Key Value
ApplicationAgriculture, Automotive.
Back Side to Center Wid.0.827 in
Bearing Housing Materia.Cast Iron
Bearing Insert Material52100 Chrome Steel, All.
Bearing Insert TypeBall, Radial Ball
Bearing Material Grade52100
Bolt Size7/16 in
Bore Dia.1 7/16 in
Bore Diameter1 7/16 in
Bore TypeCylindrical
BrandNtn
ClosureDouble Sealed
Current Stock11
Dimension A1 13/32 in
Dimension Ao1 53/64 in
Dimension B1 11/16 in
Dimension D1 1/16 in
Dimension H6 5/32 in
Dimension J5 1/8 in
Dimension L3 25/32 in
Dimension N33/64 in
Dimension S11/16 in
Dynamic Load Capacity5,778 lbf
Flange Thickness0.656 in
Housing MaterialCast Iron
Housing Material FinishBlack Oxide
Housing TypeRhombus
Included BearingA-UC207-107D1
Includes(2) Set Screws
Inner Ring Width4.6 mm
International ShippingNo
Item2 Bolt Flange Bearing
Lubricant MaterialNLGI #3 Equivalent
Lubrication OpeningsOne Zirc Fitting
Maximum Speed4,200 RPM
Maximum Temperature250 Degrees F
Minimum Temperature-40 Degrees F
Mount Hole Center-to-Ce.5.125 in
Mount Hole Size0.516 in
Mounting Bolt Size1/2 in
MpnUCFLU-1.7/16M
Number of Mount Holes2
Overall Height3.781 in, 1 53/64 in
Overall Length6.156 in, 6 5/32 in
Overall Width3 25/32 in, 1.828 in
Rolling Element Rows1
Seal MaterialNitrile Rubber
Seal TypeContact
Shaft Locking TypeSet Screws
SKUZO-G0955062
Static Radial Load Capa.3,440 lbf
SubCategoryPower Transmission
System of MeasurementInch
UPC4547359214789

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG095506299.19119Ntn3.1799.19 @ 1
thumbzoomsimsupply.comZO-G0955062117.5111Ntn117.5 @ 1
grainger.caWWG5RYG5148.623294621In StockNTN3.17148.62329462 @ 1
thumbzoomRaptor SuppliesAE6HFW174.76471351In StockNTN174.7647135 @ 1
