Ultradex A20T MDUNL3

B018KKQGCC

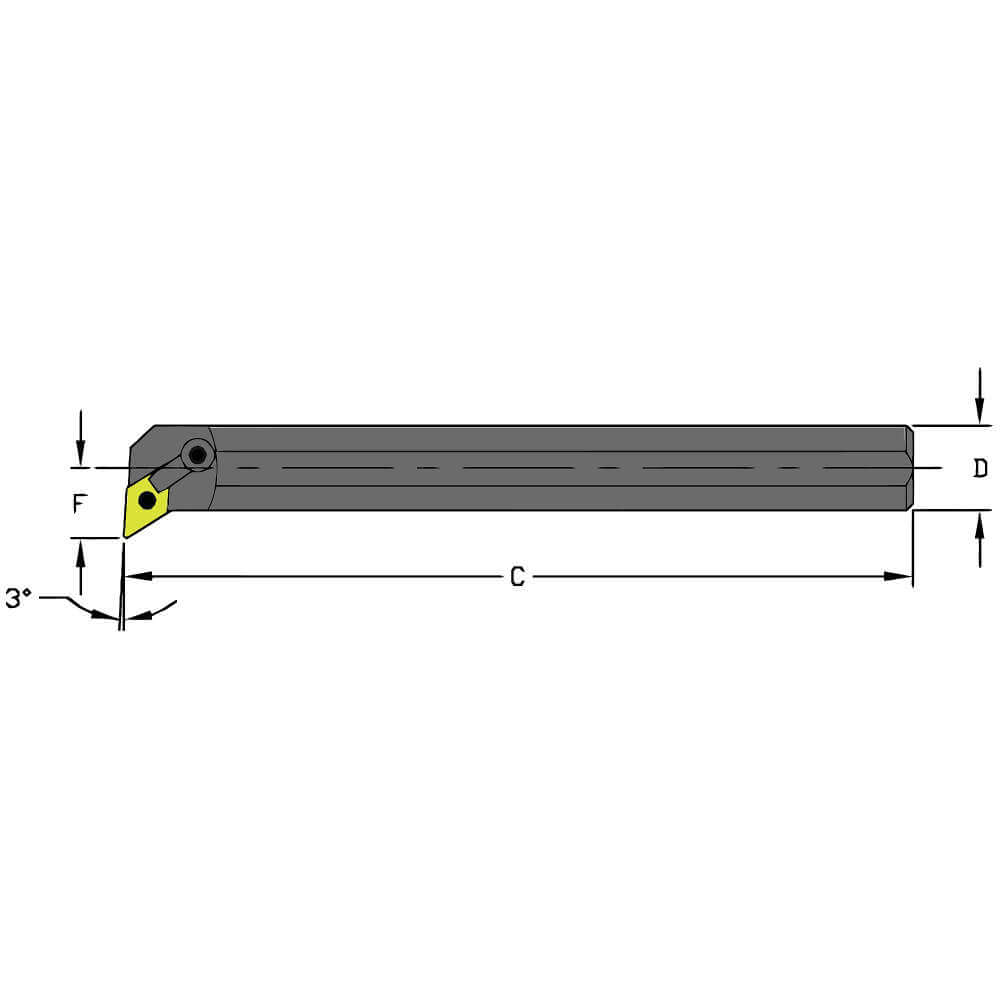

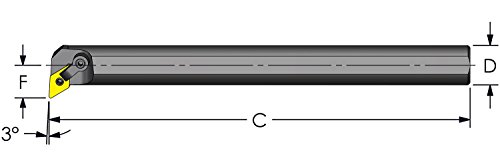

Ultra-Dex A20T MDUNL3 Steel Boring Bar to Hold a Negative DNMG 332 at -3 Degree Lead, Left Hand, Coolant Thru, 1.250" x 12", 1.700" Minimum Bore

Ultra-Dex A20T MDUNL3 Steel Boring Bar to Hold a Negative DNMG 332 at -3 Degree Lead, Left Hand, Coolant Thru, 1.250" x 12", 1.700" Minimum Borezoom

Attributes

Key Value
ANSI CodeA20T MDUNL3
ANSI NumberA20T MDUNL3
Bar Dia.1.250"
Cutting DirectionLeft Hand
Cutting Edge Type-3 Degrees
For Use WithDNMG 332
Head MaterialSteel
Inscribed Circle3/8"
Insert Shape55 Degrees Diamond
Insert Size332
Insert Thickness0.1875"
ItemIndexable Boring Bar
Lead Angle-3 Degrees
Left/Right HandLeft Hand
Min. Bore1.700"
Min. Bore Dia.1.7000 in
Mounting StyleClamp And Lock Pin
Overall Length12 in
RakeNegative
Shank Dia.1-1/4 in
Shank MaterialHigh Speed Steel
Side Cutting Edge Angle-3 Degrees
StyleSolid, Coolant-Thru
TypeTurning

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0314660338.991In Stock10Ultra-Dex Usa3.9338.99 @ 1
thumbzoomRaptor SuppliesAH3UNA499.0755511In StockULTRA-DEX USA499.075551 @ 1
