Chicago Latrobe 48372

mpn48372
brandname: CHICAGO-LATROBE
manufacturername: CHICAGO-LATROBE

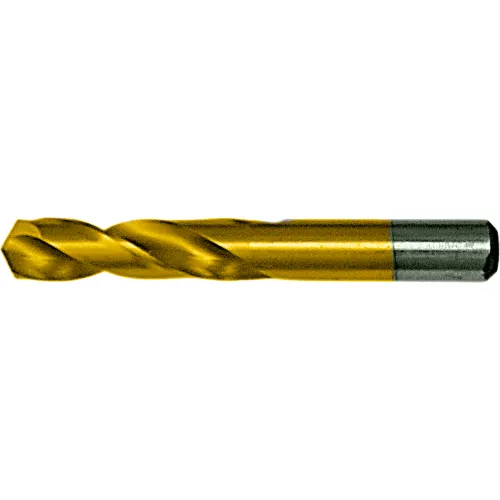

Chicago Latrobe 2159 High-Speed Steel Short Length Drill Bit, TiN Coated, Round Shank, 135 Degree Split Point, Wire Size #2 (Pack of 12)

Chicago Latrobe 2159 High-Speed Steel Short Length Drill Bit, TiN Coated, Round Shank, 135 Degree Split Point, Wire Size #2 (Pack of 12)

zoom

Brand: Chicago Latrobe
PartNumber: 48372
Model: 48372
Size: #2
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Bit Dia.	#2
Cutting Depth	1-5/16 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.2210
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.2210"
Diameter (Wire/Let)	2
Drill Bit Dimension Type	Wire
Drill Bit Finish	TiN
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	135 Degrees
Drill Bit Size	#2
Drill Construction	Heavy-Duty
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.0458 in
Drill Size - Decimal In.	0.221 in
Drill Size - Wire	#2
Drill Size System	Wire
Drill Style	Screw Machine Drill
Drilling Length	1-5/16"
Finish	TiN Coated
Flute Length	1-5/16 in, 1 5/16 in, 1.
Flute Length (Metric)	33.34mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Screw Machine Drill Bit
Material	HSS
Maximum Drilling Depth	1 5/16 in
Number of Flutes	2
Overall Length	2-7/16 in, 2 7/16 in, 2.
Overall Length (Metric)	61.91mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Series	159-TN/2159
Shank Configuration	Straight
Shank Dia.	7/32 in
Shank Length	1.1250", 1 1/8 in
Shank Length (Metric)	28.57mm
Shank Size	0.221 in Dia x 1.125 in.
Shank Size (Metric)	5.61mm
Shank Type	Straight
Sizes Included	#2
Style	159-TN
Surface Condition	TiN
Tool Size	#2
Type	Heavy Duty

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6129944	4.25	9	12		Chicago-Latrobe		4.25 @ 12
	Zoro	G2992147	4.29	1	12		Chicago-Latrobe	0.02	4.29 @ 12
	Global Industrial	WBB2546548	4.63	12	12		Chicago-Latrobe		4.63 @ 12
	usmegastore.com	48372	5.02	1	12		Chicago-Latrobe		5.02 @ 12
	Megadepot	48372	5.02	1	12		Chicago-Latrobe		5.02 @ 12
	heavydutydepot.com	48372	5.02	20	12		Chicago-Latrobe		5.02 @ 20
	National Supply Network	6131858	7.6025	12	12		Chicago-Latrobe		7.6025 @ 12
	bscsource.com	48372	9.89	1	12		Chicago-Latrobe		9.89 @ 12
