- mpnC22696
- brandname: CLE-LINE
- manufacturername: CLE-LINE

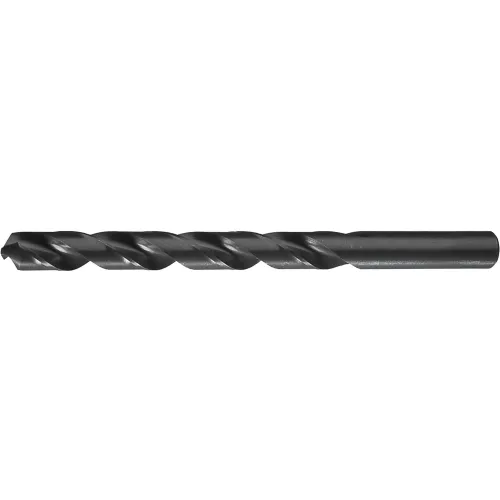

CLE-LINE Jobber Drill,#17,HSS C22696
- Brand: Cle-line
- PartNumber: C22696
- Model: C22696
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1730 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1730" |
| Diameter (Wire/Let) | 17 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black and Gold Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | #17 |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.052 in |
| Drill Size - Decimal In. | 0.173 in |
| Drill Size - Wire | #17 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Black Oxide, Black and . |
| Flute Length | 2.1875", 2-3/16 in, 2 3. |
| Flute Length (Metric) | 55.56mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 5/8 in |
| Number of Flutes | 2 |
| Overall Length | 3 3/8 in, 3-3/8 in, 3.3. |
| Overall Length (Metric) | 85.72mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 11/64 in |
| Shank Length | 1 3/16 in, 1.1875" |
| Shank Length (Metric) | 30.16mm |
| Shank Size | 0.1730", 0.173 in Dia x. |
| Shank Size (Metric) | 4.39mm |
| Shank Type | Straight |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | #17 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545312 | 1.271 | 12 | 78 | | Cle-Line | | 1.271 @ 12 |
 | MRO Supply | 6124289 | 1.55 | 33 | 64 | | Cle-Line | | 1.55 @ 33 |
 | Zoro | G1349004 | 1.65 | 1 | 498 | | Cle-Line | 0.01 | 1.65 @ 1 |
 | Megadepot | C22696 | 1.83 | 1 | 54 | | Cle-Line | | 1.83 @ 1 |
 | usmegastore.com | C22696 | 1.86 | 1 | 53 | | Cle-Line | | 1.86 @ 1 |
 | heavydutydepot.com | C22696 | 1.86 | 54 | 53 | | Cle-Line | | 1.86 @ 54 |
 | Raptor Supplies | AD6THW | 2.1564855 | 1 | 78 | | CLE-LINE | | 2.1564855 @ 1 |
| AmazonSC | B00J9GE6L0 | 18.2 | 1 | 78 | | Cle-line | | 18.2 @ 1 |
