Eaton E57-30LE22-C1D

B0078S7LC2

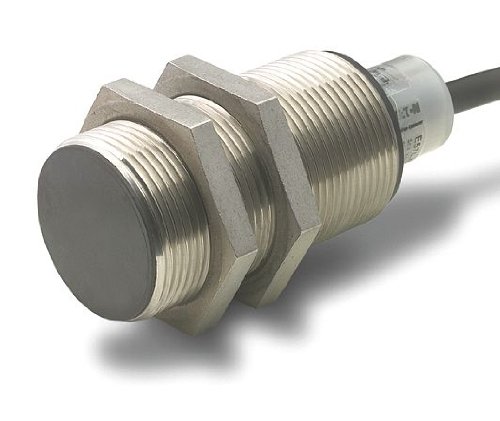

Eaton Electrical - E57-30LE22-C1D - - Eaton E57 Series, 30 mm Diameter End Sensing, Three-Wire, 6-48 Vdc, 22 mm Extended Range, Semi-shielded NPN, NC Output, 4-pin micro DC connector

Eaton Electrical - E57-30LE22-C1D - - Eaton E57 Series, 30 mm Diameter End Sensing, Three-Wire, 6-48 Vdc, 22 mm Extended Range, Semi-shielded NPN, NC Output, 4-pin micro DC connectorzoom

Attributes

Key Value
Alternate Mfr Part Numb.E57-30LE22-C1D
ApprovalscUL;CE
Basic Proximity Sensor .Metal
Body CompositionMetallic
Body materialstainless steel
Case Material303 Stainless Steel
Connectionconnector M12
Connection Type4 Pin Micro
Depth1.18 in
Description/Special Fea.360 Degrees Viewable L.
Diameter30 MilliMeters
Family SeriesCutler Hammer, Div of E.
Gross Weight0 lbs
IP Rating67
IP ratingIP67
ItemCylindrical Proximity S.
Item NumberE57-30LE22-C1D
Kind of foreheadnon-embedded
Length70 mm
Length (Straight Wirewa.70 mm
ManufacturerCutler Hammer, Div of E.
Manufacturer Part NumberE57-30LE22-C1D
Max Leakage Current0.1 MilliAmps
Max Load Current0.5 Amps
Max. Current Load500mA
Max. Detecting Distance22 mm
Max. operating current0.5A
NEMA Rating12, 13, 4, 4X, 6, 6P
Net Weight0.375 lbs
Nominal Voltage12 VDC;24 VDC;48 VDC
Number of pins4
Number of Wires3
Operating Temp. Range-13 Degrees to 158 Deg.
Operating temperature-25...70?C
Operating Voltage Range6~48 VDC
Output configurationNPN / NC
Output ModeNC
Output TypeNC NPN
Part NumberE57-30LE22-C1D
Power TypeDC
Product Height2.78 in
Product SeriesE57 PREMIUM +
Proximity Sensing MethodInductive
Proximity Sensor Diamet.30 mm
Proximity Sensor Electr.4 Pin Micro DC Connector
Proximity Sensor Operat.300 Hz
Proximity Sensor Output.3 Wire NPN
Proximity Sensor Power .6 to 48V DC
Proximity Sensor StyleCylindrical Proximity S.
Range0...22mm, 22 MilliMeters
Reverse Polarity Protec.Yes
Sensing TypeEnd
Shielded / UnshieldedSemi-Shielded
ShieldingUnshielded
Short Circuit ProtectionYes
StandardsCE Compliance, cUL List.
Status IndicatorYes
Switch housingM30
Switching frequency max300Hz
Type of sensorInductive
Weld Field ImmuneNo
Width1.18 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3192077181.991In StockEaton0.3181.99 @ 1
GalcoE57-30LE22-C1D209.441In StockCutler Hammer, Div of Eaton Corp0.375209.44 @ 1
thumbzoommotorsandcontrol.comE57-30LE22-C1D213.631In StockEaton Cutler Hammer213.63 @ 1
TMEE57-30LE22-C1D256.91In StockEATON ELECTRIC256.9 @ 1
thumbzoomWalker IndustrialE57-30LE22-C1D325.091In Stock17Eaton Cutler-Hammer325.09 @ 1
thumbzoomPlatt.com1043353361.21In StockEaton361.2 @ 1
us.rs-online.com72716370372.451In StockEaton - Cutler Hammer372.45 @ 1
thumbzoomturtle.comCUH E57-30LE22-C1D450.931In StockEaton450.93 @ 1
