Genteq 3989

mpn3989
brandname: GENTEQ
manufacturername: GENTEQ

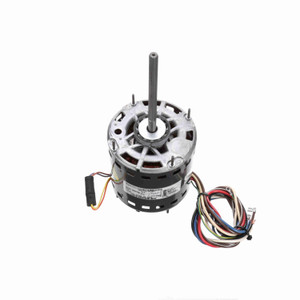

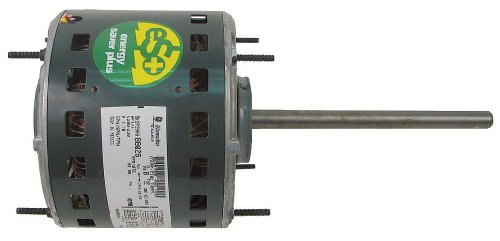

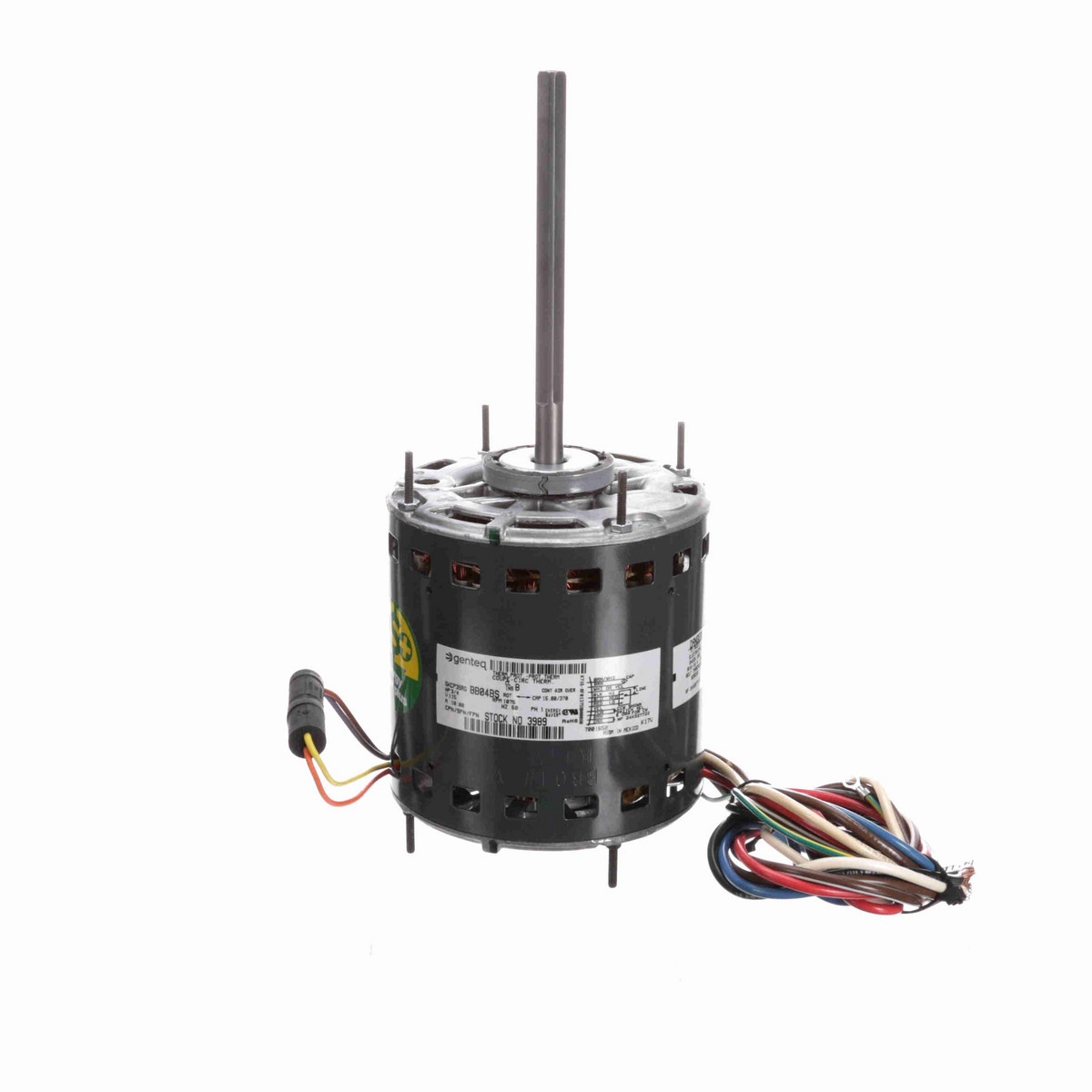

Motor, PSC, 3/4 HP, 1075 RPM, 115V, 48, OAO

Motor, PSC, 3/4 HP, 1075 RPM, 115V, 48, OAO

zoom

Brand: Genteq
PartNumber: 3989
PackageQuantity: 1
Manufacturer: GENTEQ
Label: GENTEQ

Attributes

Key	Value
Amps	10.00, 10.3
Bearings	Sleeve
Brand	Genteq
C-Dimension	13.14 (in.)
Capacitor	15MFD/370VAC
Catalog Number	3989
CE	N
CSA	Y
DE Bearing Type	Ball
DEM Reference	3989
Duty	Continuous Air Over
Electrical Type	Permanent Split Capacit.
Enclosure Type	OAO (Open Air Over), Op.
Frame	5.6"
Frame Material	Rolled Steel
Frame Type	48
Frequency	60
HP	3/4
Hz	60
Insulation Class	B
IP Code	-
KVA Code	-
Max Ambient	40?C
Motor Diameter	5.6"
Motor Orientation	Any
Motor Shell Length	5-1/4"
Mounting	Stud
Mounting Type	Resilient Rings
Number of Speeds	3
ODE Bearing Type	Ball
Phase	1
Product Category	HVAC/R Motors > Fan an.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible
RPM	1075
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
Service Factor	1
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	6.50 (in.)
Shaft Length	4"
Shaft Type	Double Flat
Ship Weight	20 lbs.
Speeds	3
Thermal Protection	Automatic
Type of Overload Protec.	Thermally Protected
UL	Recognized
Volts	115

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	patrickssupply.com	3989	224.91	1	In Stock		GENTEQ		224.91 @ 1
	industrialstores.com	3989	309.56	1	In Stock	12	Genteq (Regal Beloit)		309.56 @ 1
	Dreisilker	GE-RBC-3989	319.46	1	In Stock		Genteq		319.46 @ 1
	emotorpro.com	3989	321.35	1	In Stock		Genteq	20.0	321.35 @ 1
