Martin HMK824A

B004BDOCX8

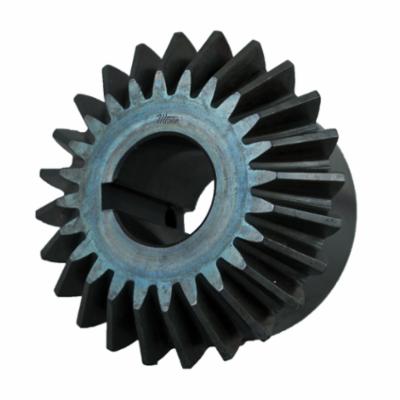

Martin HMK824A Miter Gear, 20? Pressure Angle, High Carbon Steel, Inch, 0.640" Face, 1" Bore Diameter, 3" Pitch Diameter, 3.18" Outer Diameter, 24 Teeth

Martin HMK824A Miter Gear, 20? Pressure Angle, High Carbon Steel, Inch, 0.640" Face, 1" Bore Diameter, 3" Pitch Diameter, 3.18" Outer Diameter, 24 Teethzoom

Attributes

Key Value
Bearing Type - Sprockets1
Bore TypeBored to Size
bore type:Finished w/ Keyway
Diametral Pitch8
Face Width0.64
gear overall width:1-49/64 in
Gear Ratio0.0423611111111111
Gear TypeRight Angle Drive
Hub Dia.2.5
hub diameter:2-1/2 in
Hub Projection (In.)1
hub projection:1 in
hub type:Hub w/ Set Screw
Keyway Size1/4 X 1/8
keyway size:1/4 x 1/8 in
Length through Bore1.765625
Manufacturer Number1
MaterialSteel
material:Steel
Mating GearM627, M627A, HM627, HM6.
Min. Bore1
Mounting Distance2.75
mounting distance:2-3/4 in
Number Of Teeth24
Outside Dia3.177"
Outside Diameter3.177
Pitch Diameter3
pitch:8
Pressure Angle20
pressure angle:20
Set Screw LocationOver Keyway
Set Screw Size5/16-18x5/16
standards met:ANSI B15.1
steel hardening:Hardened Teeth
Storage Height1.765625
Storage Length3.177
Storage Width3.177
tooth type:Straight
Weight2.09

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotionindustries.com00373058120.271In StockMartin120.27 @ 1
thumbzoomMRO Supply250931131.291In StockMartin Sprocket131.29 @ 1
thumbzoomindustrialzone.comHMK824A149.02In StockMartin3.0149.0 @ 2
thumbzoomPurvisHMK824A160.781In StockMartin160.78 @ 1
thumbzoomZoroG3316392165.991In StockMartin Sprocket & Gear2.09165.99 @ 1
