FirstPower 4FRK6

mpn4FRK6
brandname: Power First
manufacturername: Power First

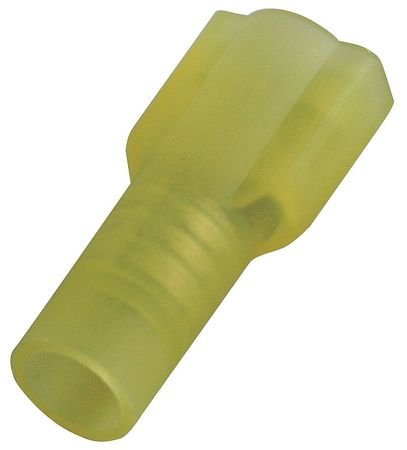

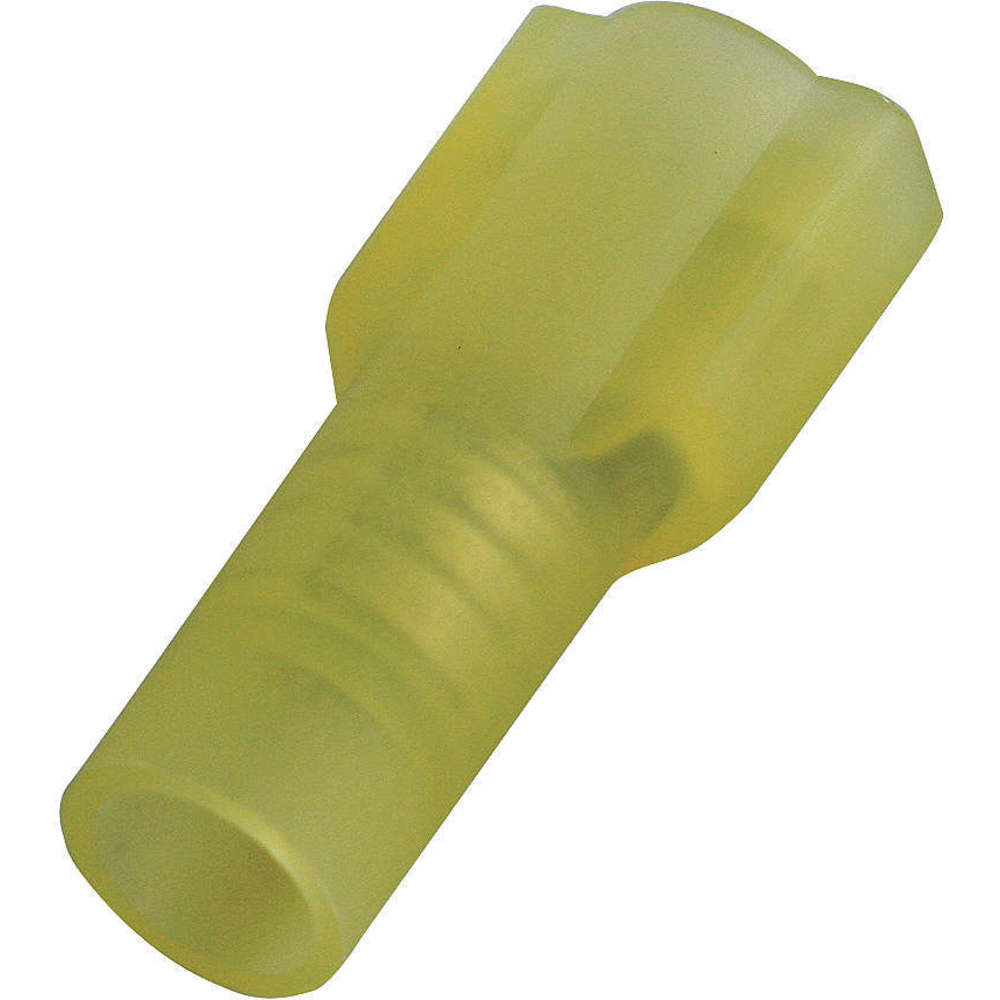

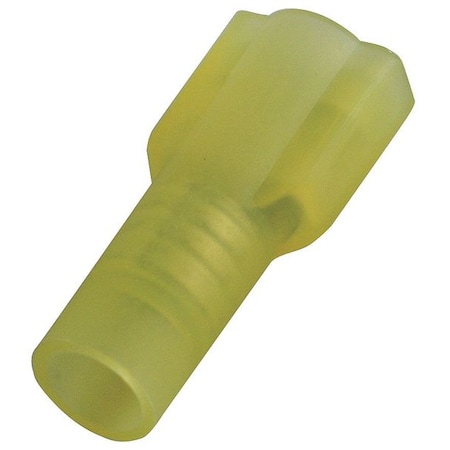

Female Disconnect, Yellow, 12-10AWG, PK50

Female Disconnect, Yellow, 12-10AWG, PK50

zoom

Brand: FirstPower
PartNumber: 4FRK6
Model: 4FRK6
Color: Yellow
PackageQuantity: 1
Manufacturer: POWER FIRST
Label: POWER FIRST

Attributes

Key	Value
Barrel Inside Dia.	0.134 in
Barrel Inside Diameter	0.138 in
Barrel Outside Diameter	0.217 in
Barrel Size	Standard
Barrel Style	Crimp
Connection Material	Brass
Connection Orientation	Straight
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Brass
Current	24 A
Disconnect Style	Tab
For Wire Size	10 AWG, 12 AWG
Insulation	Full
Insulation Color	Yellow
Insulation Colour	Yellow
Insulation Coverage	Full Coverage
Insulation Material	Nylon
Insulation Type	Nylon
Item	Female Disconnect
Max. Temp.	221 Degrees F
Max. Voltage	300 V
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	300V
Maximum Wire Size	10 AWG
Minimum Wire Size	12 AWG
Overall Length	0.906 in
RoHS Compliant	Yes
Seam	Butted
Seam Style	Butted
Standards	UL/cUL Listed, UL, cUL
Strip Length	3/8 in
Tab Size	0.032 in x 0.250 in
Tab Thickness	0.032 in
Tab Width	0.25 in
Terminal Type	Socket
Termination Style	Crimp
UL 94 Flammability Rati.	V-2
Wire Range	12 to 10 AWG
Wire Size Range	12 AWG - 10 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	grainger.ca	GGE4FRK6	11.77983138	1	50		POWER FIRST	0.15	11.77983138 @ 50
	Zoro	G1059107	17.29	1	818		Power First	0.15	17.29 @ 50
	sustainablesupply.com	C1199550	30.36	1	50		Power First	0.15	30.36 @ 50
	Raptor Supplies	AD7PAW	34.012134	1	50		POWER FIRST		34.012134 @ 50
