CAI - BURNDY K11A36U2

B07J66B9RV

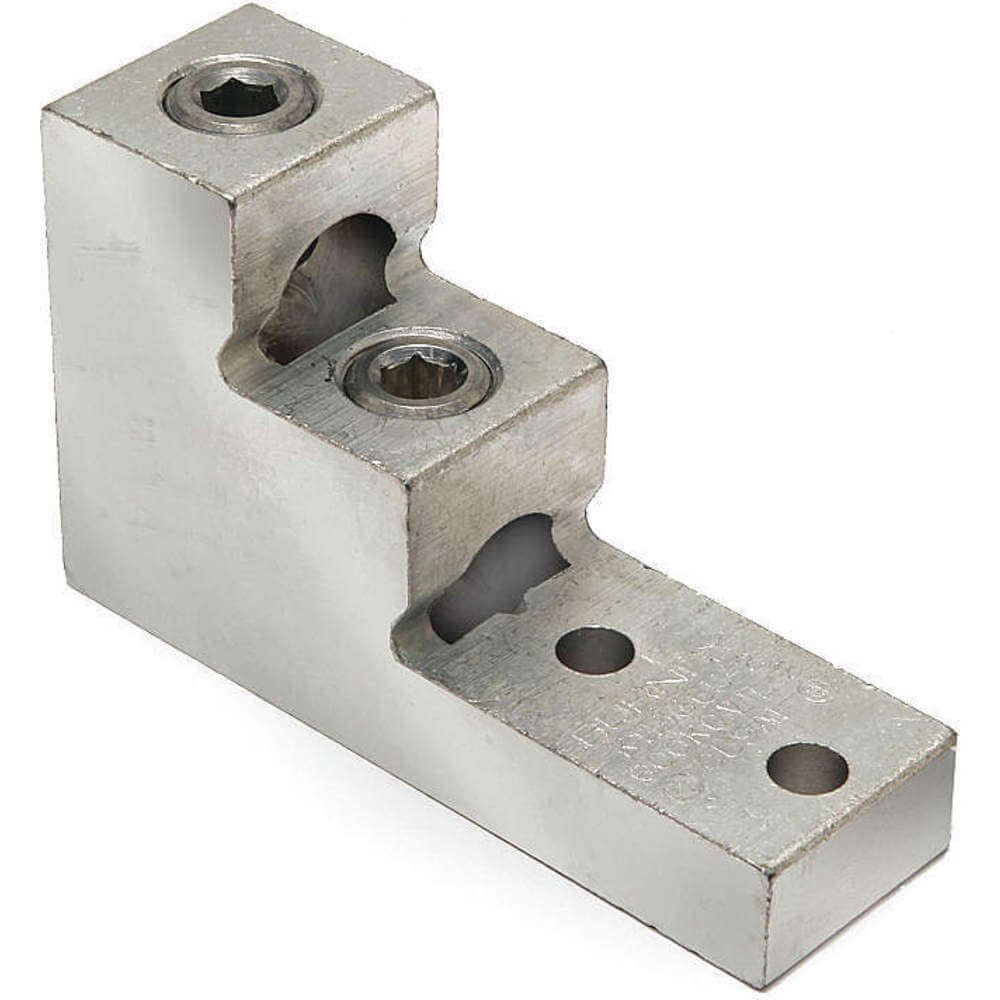

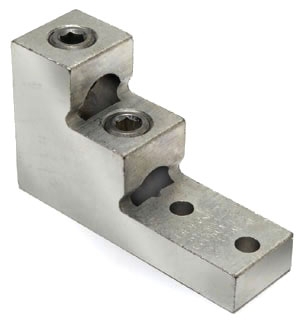

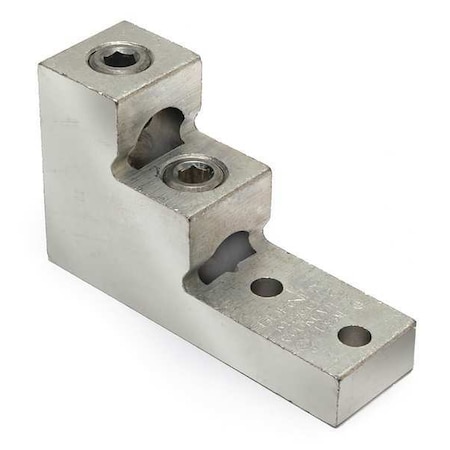

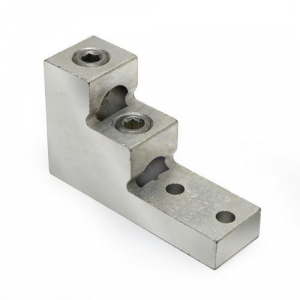

BURNDY Mechanical Connector, Tin-Plated Aluminum, Max. Conductor Size: 600 kcmil Stranded, 4/0 AWG Solid

BURNDY Mechanical Connector, Tin-Plated Aluminum, Max. Conductor Size: 600 kcmil Stranded, 4/0 AWG Solidzoom

Attributes

Key Value
Aluminum Size (Range)2 AWG-600 kcmil
ApprovalsCSA, UL
ASINB002FYALYE
Body MaterialAluminum
Bolt Hole Size3/8
Compatible with Product.Aluminum Cable, Copper .
Conductor - AL Str Size2 AWG;1 AWG;1/0 AWG;2/0.
Conductor - AL Str Size.2 AWG (Str)-600 kcmil
Conductor - Copper Soli.1 AWG;1/0 AWG;2/0 AWG;3.
Conductor - Copper Soli.1 AWG-4/0 AWG
Conductor - Copper Str .2 AWG;1 AWG;1/0 ;2/0 AW.
Conductor - Copper Str .2 AWG (Str)-600 kcmil
Connection OrientationDual Rated Lug
Connector TypeTerminal
Contact FinishTin
Copper Solid Size (Rang.1 AWG-4/0 AWG
Copper Stranded (Range)2 AWG-600 kcmil
Country of OriginUS - United States
Dimension - Bolt Hole S.0.38 in
Dimension - D inch2.31 in
Dimension - Height frac.3 in
Dimension - Height inch3.02 in
Dimension - Hole Size i.0.41 in
Dimension - Hole Size mm10 mm
Dimension - L Length Ov.125 mm
Dimension - Length Over.4.91 in
Dimension - N inch0.38 in
Dimension - Pad Width i.1.52 in
Dimension - Screw Size .15/16
Dimension - Stud Size f.44993
Dimension - Stud Size i.3/8 in
Dimension - Width fract.1-1/2 in
Dimension - Width inch1.52 in
Dimension - Width mm38 mm
ECCNEAR99
Family SeriesBurndy Terminals, KA-U .
For Conductor MaterialAluminum, Copper
For Stranded Copper Wir.600 kcmil
For Stranded Copper Wir.2 AWG
For Stud Size3/8 in
For Wire Size1/0 AWG, 2 AWG, 2/0 AWG.
Gross Weight2.065 lbs
Head StyleHex
Hole Diameter0.41 in
Hole Spacing1.38 in
Installation Torque375
Installation Torque Rec.375 LBS/in
Is Discontinued By Manu.No
ItemMechanical Connector
Item model numberK11A36U2
Item NumberK11A36U2
Length4.91 in
Length (Straight Wirewa.4.91 in
Lug Wire Size2 AWG-600 kcmil
ManufacturerBurndy
Manufacturer Part NumberK11A36U2
MaterialTin Plated Aluminum, Ti.
Material/CompositionAluminum Alloy
Max Conductor Range600 kcmil
Max. Conductor Size4/0 AWG Solid, 600 kcmi.
Maximum Operating Tempe.194 Degrees F
Maximum Voltage600 V
Min Conductor Range2 AWG
Min. Conductor Size1 AWG Solid, 2 AWG Stra.
Net Weight0.0581 lbs
No. of Conductors2
Number of Conductors2
Number of Holes2
Number of Terminations2
Overall Depth1 9/16 in
Overall Length4.91 in
Overall Width3.02 in
Plated (Yes or No)Y
Product MaterialAluminum
Product SeriesKA-U
RoHS CompliantNo
Special FeaturesProviding Low Contact R.
StandardsCSA Certified, UL Listed
Stud Size3/8 in, 3/8 in.
Tongue Length2.31 in
Tongue Thickness0.75 in
Tongue Width1.5 in
Torque375 in-lb
TypeBolted Lugs & Terminals
Type of PlatingTin
UL ListedYes
UNSPSC39121408
UPC Code781810370285
Use WithAluminum and Copper Con.
Width3.02 in
Wire Size Ranges2 AWG - 600 kcmil

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com1950042.331In StockBURNDY42.33 @ 1
thumbzoomKelly HayesK11A36U-272.61186Burndy72.6 @ 1
Graybar8804753280.2592113Burndy80.2592 @ 1
thumbzoomgordonelectricsupply.comK11A36U-291.781In StockBURNDY91.78 @ 1
thumbzoomZoroG4657231107.991122Burndy0.85107.99 @ 1
thumbzoomMegadepotK11A36U2108.01In StockBurndy108.0 @ 1
thumbzoomGalcoK11A36U2-BURN111.641In StockBurndy2.065111.64 @ 1
thumbzoomusmegastore.comK11A36U2113.31In StockBurndy113.3 @ 1
thumbzoomAmazonSCB002FYALYE119.31In StockBURNDY119.3 @ 1
us.rs-online.com71486395165.9311BURNDY165.93 @ 1
thumbzoomRaptor SuppliesAB6REB237.15753751In StockBURNDY237.1575375 @ 1
