Cle-line C20691

B00J9MC7HE

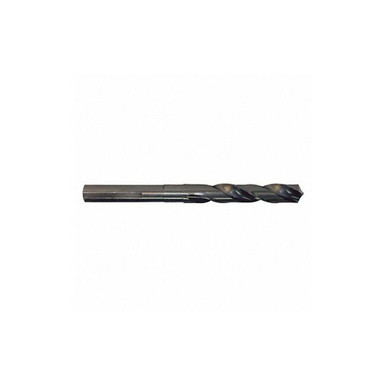

Cle-Line C20691 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 7/8" Drill Diameter

Cle-Line C20691 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 7/8" Drill Diameterzoom

Attributes

Key Value
ApplicationFor Alloy And Carbon St.
BrandCle-Line
Coolant FedNon-Coolant Through
Current Stock30
Cutting DirectionRight Hand
Decimal Equivalent0.8750
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.8750"
Diameter (Fraction)7/8"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBlack Oxide
Drill Bit GroupingIndividual
Drill Bit Point Angle118 Degrees, 118 Degre.
Drill Bit Point TypeConventional Point
Drill Bit Size7/8 in
Drill ConstructionGeneral Purpose
Drill Diameter Tolerance+0.0000 in /-0.0012 in
Drill Size SystemFractional
Drill StyleSilver & Deming Drill
Finish - MachiningBlack Oxide
Flute Length3 1/8 in, 3.1250"
Flute Length (Metric)79.38mm
Flute TypeSpiral
Hand of CutRight
Hand of SpiralRight
Helix Angle28 Degrees
International ShippingNo
ItemReduced Shank Drill Bit
MaterialHSS
Material - MachiningHigh Speed Steel
Maximum Drilling Depth3 1/2 in
Measurement SystemFractional Inch
MpnC20691
Number of Flutes2
Overall Length6.0000", 6 in
Overall Length (Metric)152.40mm
Point Angle118?
Point StyleRadial
Primary Material Applic.Cast Iron, Steel
Primary Material Applic.K, P
Series1892
Shank ConfigurationReduced w/ 3 Flats
Shank Dia.1/2 in
Shank End Feature3 Flats
Shank End Feature Length0.8750"
Shank Length2 1/4 in, 2.2500"
Shank Length (Metric)57.15mm
Shank Neck Diameter0.8310"
Shank Neck Length0.5000"
Shank Size0.5000"
Shank Size (Metric)12.70mm
Shank Type - MachiningStraight
Silver & Deming DrillYes
SKUZO-G4953737, C20691
Spiral DirectionRight Hand
StandardsNot Rated
SubCategoryMachining
Surface ConditionSteam Oxide
Tool Size7/8"
UPC697334206910, 6.97334E+.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB254433423.751In StockCle-Line23.75 @ 1
thumbzoomusmegastore.comC2069124.491In StockCle-Line24.49 @ 1
thumbzoomMegadepotC2069126.81In StockCle-Line26.8 @ 1
thumbzoomheavydutydepot.comC2069126.84In StockCle-Line26.8 @ 4
thumbzoomZoroG495373729.19173Cle-Line0.5529.19 @ 1
AmazonSCB00J9MC7HE36.01In StockCle-line36.0 @ 1
thumbzoomsimsupply.comZO-G495373739.71130Cle-Line39.71 @ 1
Grainger50AY5845.931In StockCLE-LINE45.93 @ 1
thumbzoomimsbolt.comC2069149.481In StockCLE-LINE49.48 @ 1
