Cle-Line C20697

mpnC20697
brandname: Cle-Line
manufacturername: Cle-Line

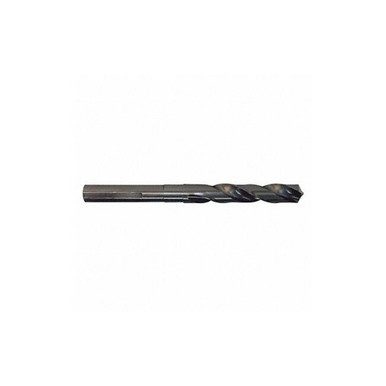

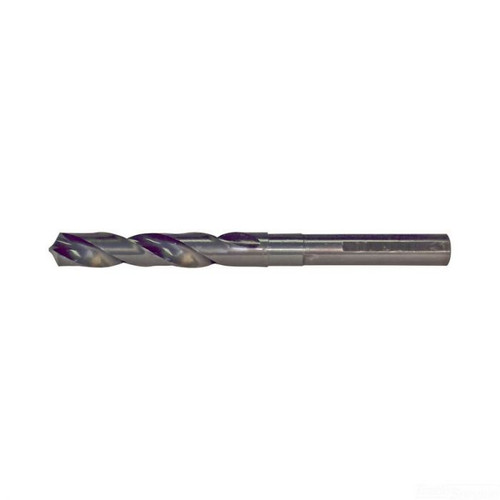

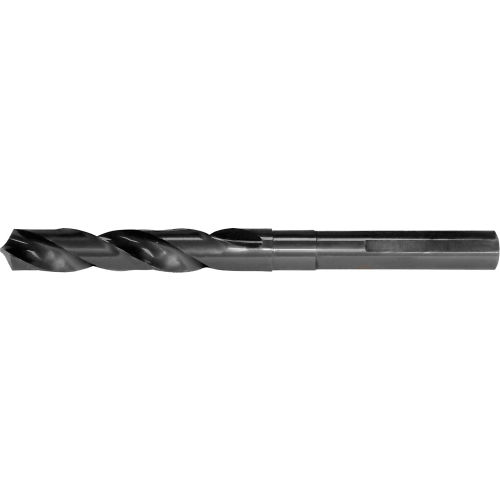

Cle-Line C20697 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 1 1/8" Drill Diameter

Brand: Cle-Line
PartNumber: C20697
Model: C20697
Color: Black Oxide
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Low Carbons, Stainless .
Application	For Alloy And Carbon St.
Brand	Cle-Line
Coolant Fed	Non-Coolant Through
Current Stock	17
Cutting Depth	3-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	1.1250
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	1.1250"
Diameter (Fraction)	1-1/8"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 Degrees
Drill Bit Size	1 1/8 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0015 in
Drill Size - Decimal In.	1.125 in
Drill Size - Fraction	1-1/8 in
Drill Size System	Fractional
Drill Style	Silver & Deming Drill
Finish	Black Oxide
Flute Length	3 1/8 in, 3.1250", 3-1/.
Flute Length (Metric)	79.38mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
International Shipping	No
Item	Reduced Shank Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Material Grade - Machin.	M42
Maximum Drilling Depth	4 1/2 in
Measurement System	Fractional Inch
Mpn	C20697
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1892
Shank Configuration	Reduced w/ 3 Flats
Shank Dia.	1/2 in
Shank End Feature	3 Flats
Shank End Feature Length	0.8750"
Shank Length	2 1/4 in, 2.2500"
Shank Length (Metric)	57.15mm
Shank Neck Diameter	1.0810"
Shank Neck Length	0.5000"
Shank Size	0.5000", 1/2 in
Shank Size (Metric)	12.70mm
Shank Type	Reduced/Round
Silver & Deming Drill	Yes
SKU	ZO-G4953971, C20697
Spiral Direction	Right Hand
Style	1892
SubCategory	Machining
Surface Condition	Steam Oxide
Tool Size	1-1/8"
Type	General Purpose
UPC	697334206972, 6.97E+11
