CLELINE C22999

mpnC22999
brandname: Cle-Line
manufacturername: Cle-Line

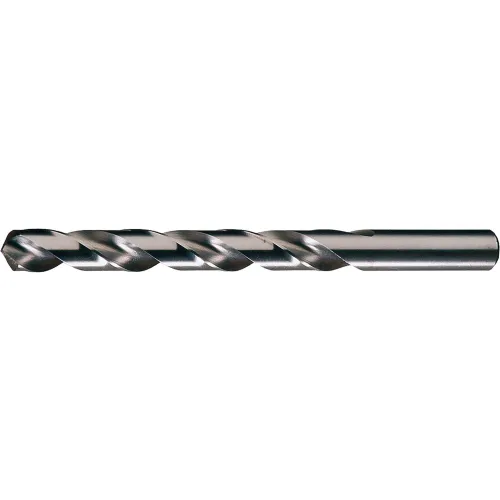

Cle-Line C22999 General Purpose Jobber Length Drill, High Speed Steel, Bright Finish, Straight Shank, 118-Degree Radial Point, 1/8" Drill Diameter (Pack of 12)

Cle-Line C22999 General Purpose Jobber Length Drill, High Speed Steel, Bright Finish, Straight Shank, 118-Degree Radial Point, 1/8" Drill Diameter (Pack of 12)

zoom

Brand: CLELINE
PartNumber: C22999
Model: C22999
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Coolant Fed	Non-Coolant Through
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.1250
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.1250"
Diameter (Fraction)	1/8"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Bright (Uncoated)
Drill Bit Grouping	Drill Bit
Drill Bit Point Angle	118 Degrees
Drill Bit Size	1/8 in
Drill Construction	General Purpose
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in/-0.0005 in
Drill Length Class	Jobber Length
Drill Point Length	0.0376 in
Drill Size - Decimal In.	0.125 in
Drill Size - Fraction	1/8 in
Drill Size System	Fractional
Drill Style	Jobber Drill
Finish	Bright
Flute Length	1-5/8 in, 1.6250", 1 5/.
Flute Length (Metric)	41.27mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
Item	Jobber Length Drill Bit
List Number	1898
Material	HSS
Maximum Drilling Depth	1 7/32 in
Number of Flutes	2
Overall Length	2-3/4 in, 2 3/4 in, 2.7.
Overall Length (Metric)	69.85mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1898
Shank Configuration	Straight
Shank Dia.	1/8 in
Shank Length	1.1250", 1 1/8 in
Shank Length (Metric)	28.57mm
Shank Size	0.1250", 1/8 in Dia x 1.
Shank Size (Metric)	3.17mm
Shank Type	Straight
Standards	ASME B94.11M
Style	1898
Surface Condition	Bright
Through Coolant (Yes/No)	No
Tool Size	1/8"

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Global Industrial	WBB2544991	0.83	12	12		Cle-Line		0.83 @ 12
	MRO Supply	6124538	0.95	53	12		Cle-Line		0.95 @ 53
	usmegastore.com	C22999	1.04	1	12		Cle-Line		1.04 @ 12
	Megadepot	C22999	1.04	1	12		Cle-Line		1.04 @ 12
	heavydutydepot.com	C22999	1.04	97	12		Cle-Line		1.04 @ 97
	Zoro	G4945361	11.88	1	480		Cle-Line	0.01	11.88 @ 12
