- mpnC23397
- brandname: Cle-Line
- manufacturername: Cle-Line

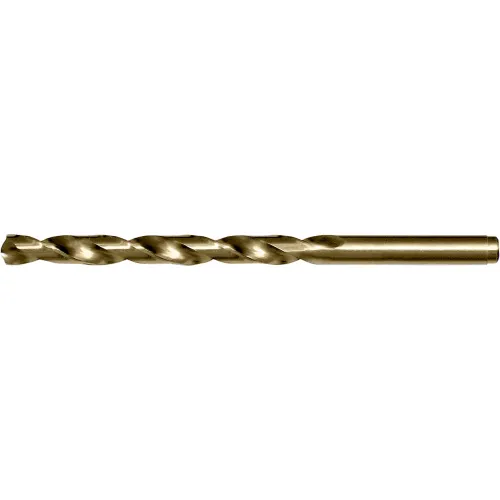

Cle-Line C23397 Cobalt Heavy Duty Jobber Length Drill, Cobalt, Gold Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 37 (Pack of 12)
- Brand: Cle-line
- PartNumber: C23397
- Model: C23397
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Application | For Alloy, Stainless St. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.1040 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1040" |
| Diameter (Wire/Let) | 37 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #37 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in,. |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0215 in |
| Drill Size - Decimal In. | 0.104 in |
| Drill Size - Wire | #37 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 1 7/16 in, 1-7/16 in, 1. |
| Flute Length (Metric) | 36.51mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit. |
| List Number | 1802 |
| Material | M42 HSS-Co 8%, HSS-CO, . |
| Material - Machining | Cobalt |
| Material Grade - Machin. | High Performance |
| Maximum Drilling Depth | 3/8 in, 1 1/16 in |
| Measurement System | Wire |
| Number of Flutes | 2 |
| Overall Length | 2.5000", 2-1/2 in, 2 1/. |
| Overall Length (Metric) | 63.50mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split Point, Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 3/32 in |
| Shank Length | 1.0625", 1 1/16 in |
| Shank Length (Metric) | 26.99mm |
| Shank Size | 0.1040", 0.104 in Dia x. |
| Shank Size (Metric) | 2.64mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME |
| Style | 1802 |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | #37 |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C23397 | 1.43 | 1 | 12 | | Cle-Line | | 1.43 @ 12 |
 | heavydutydepot.com | C23397 | 1.43 | 70 | 12 | | Cle-Line | | 1.43 @ 70 |
 | Global Industrial | WBB2543601 | 1.5881 | 12 | 12 | | Cle-Line | | 1.5881 @ 12 |
 | usmegastore.com | C23397 | 1.73 | 1 | 12 | | Cle-Line | | 1.73 @ 12 |
 | MRO Supply | 6124822 | 1.92 | 27 | 12 | | Cle-Line | | 1.92 @ 27 |
 | Zoro | G6375602 | 2.13 | 12 | 32 | | Cle-Line | 0.6 | 2.13 @ 12 |
 | sustainablesupply.com | C2765358 | 2.64 | 1 | 12 | | Cle-Line | | 2.64 @ 12 |
