Dayton Audio DA270-8

B003TXVMP2

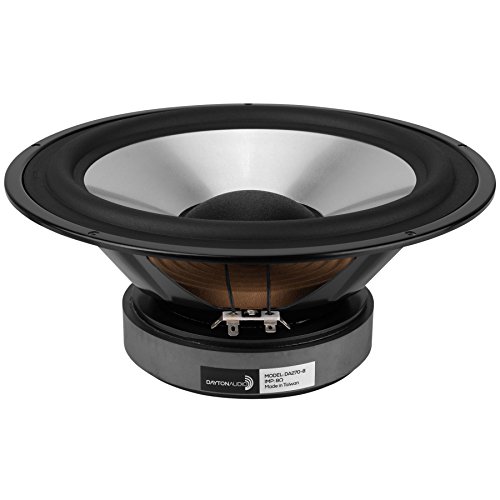

Dayton Audio DA270-8 10" Aluminum Cone Woofer

Dayton Audio DA270-8 10" Aluminum Cone Wooferzoom

Attributes

Key Value
# Mounting Holes5
Baffle Cutout Diameter8.94"
Basket / Frame MaterialSteel
BL Product (BL)10.1T?m
Bolt Circle Diameter10.24
BrandDayton Audio
Compliance Equivalent V.3.83ft?
Cone MaterialAluminum
DC Resistance (Re)6.3?
Depth4.53"
Diaphragm Mass Inc. Air.51.3g
Electromagnetic Q (Qes)0.55
Frequency Response25 to 6,000Hz
Impedance8?
Magnet MaterialFerrite
Maximum Linear Excursio.6.1mm
Mechanical Compliance o.0.64mm/N
Mechanical Q (Qms)1.95
ModelDA270-8
Nominal Diameter10"
Overall Outside Diameter10.63"
Part Number295-334
Power Handling (MAX)160 Watts
Power Handling (RMS)80 Watts
Resonant Frequency (Fs)27.8Hz
Sealed F360Hz
Sealed Volume0.95ft?
Sensitivity88.2dB 2.83V/1m
Surface Area of Cone (S.346.4cm?
Surround MaterialRubber
Total Q (Qts)0.43
Unit of MeasureEach
UPC844632087707
Vented F331Hz
Vented Volume2.8ft?
Voice Coil Diameter1.42"
Voice Coil FormerAluminum
Voice Coil Inductance (.1.2mH
Voice Coil Wire MaterialCopper
Weight8.4
