- mpnXTCE025C10TD
- brandname: Eaton
- manufacturername: Eaton

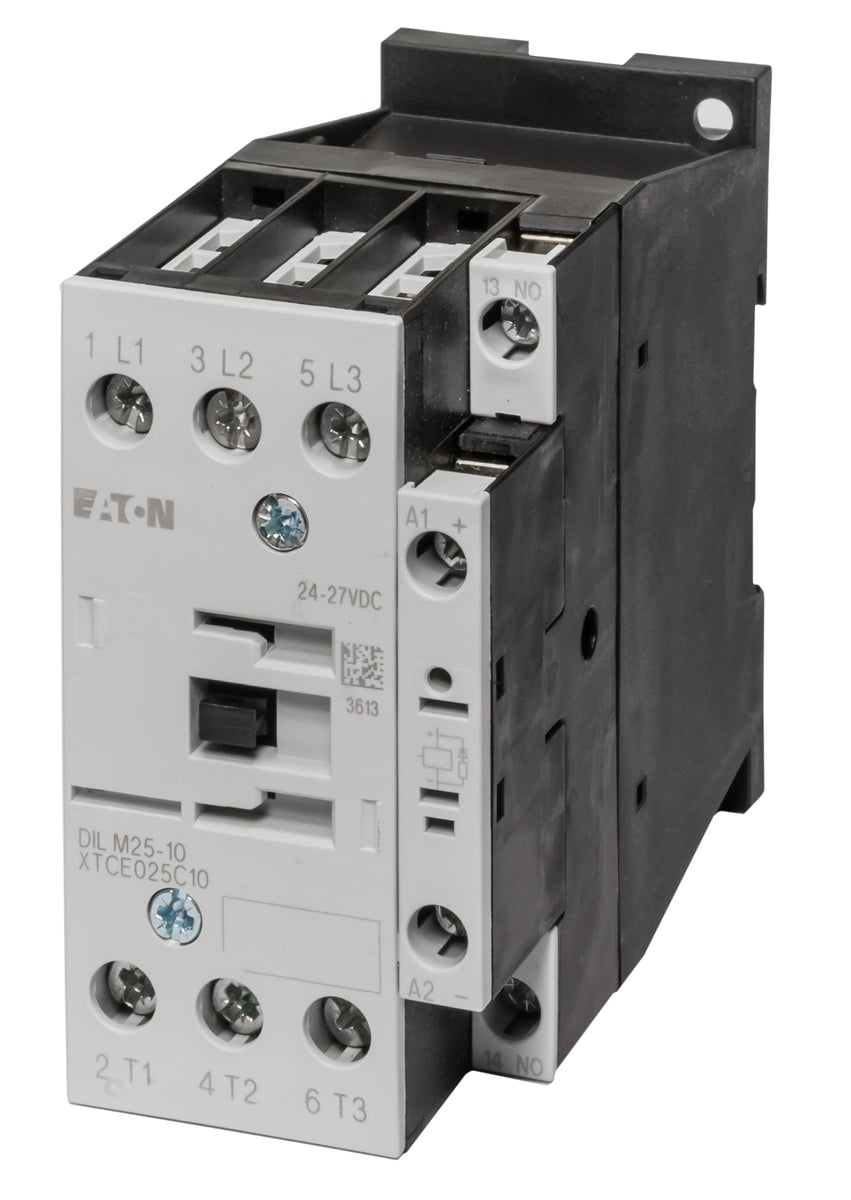

Eaton XTCE025C10TD - H2522 IEC MG Contactor 24VDC 25A 1NO
- Binding: Misc.
- Manufacturer: Eaton
- Label: Eaton
Attributes
| Key | Value |
|---|
| Action | Non-Reversing |
| Alternate Mfr Part Numb. | XTA290851 |
| Amperage Rating | 25 Amp |
| Amps | 25 |
| Application | Elec Assemblies, Panels. |
| Approvals | UL Listed ; CSA Certifi. |
| Aux. Contact Configurat. | 1NO |
| Auxiliary Contact | 1 NO |
| Auxiliary Contact Form | 1NO |
| Brand | Eaton |
| Brand Name | Eaton |
| Catalog Number | XTCE025C10TD |
| Certification Listings | CSA, EN 60947, IEC 6094. |
| Coil Power | 24 Vdc |
| Coil Voltage | 24VDC, 24 Volt DC, 24-2. |
| Coil Volts | 24 V DC |
| Contact Configuration | 1NO, 1 NO |
| Contact Current Rating | 25 A |
| Control Voltage | 24 V |
| Country of Origin | Romania |
| Country of Origin (subj. | Romania |
| Current Stock | 22 |
| Degree of Protection | IP20 |
| Depth | 3.82 in, 0.079 in |
| Dimensions | 45 x 97.4 x 85 mm |
| Enclosure NEMA Rating | No Enclosure |
| Energy Star Flag | No |
| Frame | C, 45 mm |
| Frame / Series / Class . | Frame C |
| Frequency Rating | 50/60 Hz |
| Full Load Amps-Inductive | 25 A |
| Full Load Amps-Resistive | 45 A |
| Height | 1.77 in, 2 Inch |
| Horsepower Rating | 20 hp |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 230V | 5 |
| HP @ 1 Phase - 240V | 5 hp |
| HP @ 230V (1ph) | 5 |
| HP @ 230V (3ph) | 5 |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 480V | 15 hp |
| HP @ 3 Phase - 575V | 20 hp |
| HP @ 460V (3ph) | 15 |
| International Shipping | No |
| Item | IEC Magnetic Contactor |
| Item Name | IEC Contactor |
| Item Type | Contactors |
| Lead Time | Expected to ship in 1-2. |
| Length | 4 in |
| Made in USA | No |
| Manufacturer | Eaton Cutler Hammer, Ea. |
| Manufacturer Name | Eaton |
| Manufacturer Part Number | XTCE025C10TD |
| Maximum Load Capacity | 1-Phase: 2 hp at 115 Vo. |
| Maximum Operating Tempe. | 50 C |
| Minimum Operating Tempe. | -25 C |
| Mounting | DIN Rail/Panel, Panel, . |
| Mounting Type | DIN Rail Mount ; Panel . |
| Mpn | XTCE025C10TD |
| N/O Contacts | 1 |
| Number of Poles | 3 |
| Part Number | XTCE025C10TD |
| Phase | 1 or 3 |
| Poles | 3 |
| Poles (Closed) | 3 |
| Power Rating | 5 kW |
| Primary Type | Contactor |
| Reversing | No |
| Series | XT Series |
| Size | 1.77 L x 2.68 H x 2.95 . |
| SKU | ZO-G0581314 |
| Special Features | Low Power Consumption A. |
| Standard | CSA Certified,UL Listed. |
| Standards | UL/CE/CSA/CCC/ATEX/IEC . |
| SubCategory | Electrical |
| Temperature Operating R. | -25 to 50 C |
| Temperature Rating | -25 to 50 deg C |
| Terminal Connection | Screw |
| Terminal Type | Screw |
| Terminals | Screw terminals |
| Type | Full Voltage, Non-Rever. |
| UNSPSC | 39121529 |
| UPC | 786685363097, 015082771. |
| UPC Code | 4015082771461 |
| Voltage Rating | 24 V |
| Volts DC Control | 24 |
| Weight | 1.2 Pound |
| Width | 0 in, 1.77 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Monarch Electric | 430914 | 106.07 | 1 | In Stock | | Eaton | | 106.07 @ 1 |
 | motorsandcontrol.com | XTCE025C10TD | 109.74 | 1 | In Stock | | Eaton Cutler Hammer | | 109.74 @ 1 |
 | turtle.com | CUH XTCE025C10TD | 126.94 | 1 | In Stock | | Eaton | | 126.94 @ 1 |
 | Platt.com | 0722011 | 150.54 | 1 | 17 | | Eaton | | 150.54 @ 1 |
 | Walker Industrial | XTCE025C10TD | 150.8 | 1 | In Stock | | Eaton Cutler-Hammer | | 150.8 @ 1 |
| AmazonTP | B00E2X1W9E | 159.81 | 1 | In Stock | 5 | Eaton | | 159.81 @ 1 |
 | Carlton Bates Company | 01508277146 | 160.07 | 1 | In Stock | | EATON | | 160.07 @ 1 |
 | controlparts.com | XTCE025C10TD | 160.6 | 1 | In Stock | | Eaton | | 160.6 @ 1 |
 | electricalparts.com | XTCE025C10TD | 167.5856 | 1 | 3 | | Eaton | | 167.5856 @ 1 |
 | sustainablesupply.com | C2883181 | 182.42 | 1 | In Stock | | Eaton | 1.22 | 182.42 @ 1 |
| Grainger | 4TYY6 | 185.5 | 1 | 11 | 0 | EATON | | 185.5 @ 1 |
| simplybreakers.com | XTCE025C10TD | 189.99 | 1 | In Stock | | Eaton Cutler-Hammer | | 189.99 @ 1 |
 | simsupply.com | ZO-G0581314 | 214.29 | 1 | 22 | | Eaton | | 214.29 @ 1 |
 | Zoro | G0581314 | 233.49 | 1 | In Stock | | Eaton | 1.22 | 233.49 @ 1 |
 | bscsource.com | XTCE025C10TD | 240.79 | 1 | In Stock | | Eaton Cutler-Hammer | | 240.79 @ 1 |
| us.rs-online.com | 70056474 | 256.47 | 1 | 60 | | Eaton - Cutler Hammer | 1.2 | 256.47 @ 1 |
 | cappusa.com | 2414508 | 258.99 | 1 | In Stock | | Eaton | | 258.99 @ 1 |
 | crescentelectric.com | 621256 | 264.22 | 1 | 59 | | Eaton | | 264.22 @ 1 |
| Newark | 12N1622 | 283.07 | 1 | 282 | | EATON CUTLER HAMMER | | 283.07 @ 1 |
 | National Supply Network | 8804817 | 296.72 | 1 | In Stock | | Eaton Cutler-Hammer | | 296.72 @ 1 |
| Airline Hydraulics | EATON XTCE025C10TD | 475.47 | 1 | 923 | | Eaton | | 475.47 @ 1 |
