Ezo SR166ZZA3MC3SRL

mpnSR166ZZA3MC3SRL
brandname: Ezo
manufacturername: Ezo

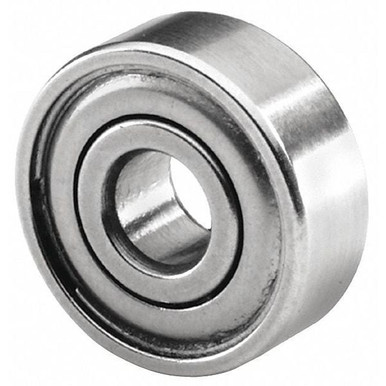

Ball Bearing, 0.1875In Dia, 61 Lb, Shielded

Ball Bearing, 0.1875In Dia, 61 Lb, Shielded

zoom

Brand: Ezo
PartNumber: SR166ZZA3MC3SRL
Model: SR166ZZA3MC3SRL
PackageQuantity: 1
Binding: Misc.
Manufacturer: Ezo
Label: Ezo

Attributes

Key	Value
Bearing Industry Number	R166
Bore Dia.	0.1875 in
Bore Diameter	3/16 in
Brand	Ezo
Cage Material	Steel
Cage Type	Ribbon
Closure	Double Shielded
Closure & Seal Type	Double Shielded
Current Stock	97
Dynamic Load Capacity (.	159 lb
Dynamic Radial Load Cap.	159.8471 lbf
Extended Inner Ring	Yes
Extended Inner Ring Wid.	0.125 in
Fillet Radius	0.0039 in
Finish	Chrome Plated
Flange Type	Non-Flanged
Includes Retaining Ring	No
International Shipping	No
Item	Miniature Ball Bearing
Lead Time	Expected to ship in 1-2.
Lubricant Material	Grease
Lubrication	Grease
Material	Stainless Steel
Max. RPM	50,000 RPM
Maximum Speed	700,140 RPM
Maximum Temperature	302 Degrees F
Minimum Temperature	-40 Degrees F
Mpn	SR166ZZA3MC3SRL
Outer Ring Width	0.125 in
Outside Dia.	0.375 in
Outside Diameter	3/8 in
Retaining Ring Diameter	Not Applicable
Retaining Ring Groove	No
Retaining Ring Thickness	Not Applicable
Ring Material	Stainless Steel
Shield Material	Steel
SKU	ZO-G2401990
Static Load Capacity (L.	61 lb
Static Radial Load Capa.	60.70143 lbf
SubCategory	Power Transmission
System of Measurement	Inch
Temp. Range (F)	-40 Degrees to 302 Deg.
Type	Shielded, Unflanged
Width	0.125 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2401990	4.15	1	106		Ezo	0.02	4.15 @ 2
	grainger.ca	WWG45VC68	5.443545	1	2		EZO	0.015	5.443545 @ 2
	simsupply.com	ZO-G2401990	10.88	1	97		Ezo		10.88 @ 2
