- mpn326087
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

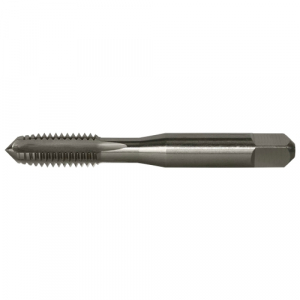

Hand Tap, Plug, 1/4-28, Bright, 2 Flt
- Brand: Greenfield Threading
- PartNumber: 326087
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 5.70 mm |
| 65% Thread Drill Size | 7/32 in |
| 75% Thread Drill Size | 5.45 mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Plug |
| Class of Fit | 2B |
| Cutting Direction | Right Hand |
| Diameter | 0.25" |
| Finish/Coating | Bright |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut |
| Item | Straight Flute Hand Tap |
| Length of Cut | 2 in |
| List Number | HTGP |
| Material | HSS, High-Speed Steel |
| Material Application | Cast Iron, Steel, Stain. |
| Measurement System | Imperial |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 2-1/2", 2.5 in, 2-1/2 i. |
| Overall Length (Metric) | 63.50mm |
| Package Quantity | 6 per case |
| Pitch Diameter Limit | H3 |
| Product Type | Straight Flute Hand Tap |
| Series | HTGP |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.255" |
| Shank Diameter | 0.255 in |
| Shank End | Square |
| Shank Length | 1 1/2 in |
| Shank Size | 0.255", 0.255 in |
| Shank Size (Metric) | 6.48mm |
| Shank Square Length | 0.3125" |
| Shank Square Length (Me. | 7.94mm |
| Shank Square Width | 0.191" |
| Shank Square Width (Met. | 4.85mm |
| Square Size | 0.1910 in |
| Style | HTGP |
| Surface Condition | Bright, Right |
| Surface Finish | Bright |
| Tap Chamfer | Plug |
| Tap Construction | Plug, Standard |
| Tap Dimension Type | Inch |
| Tap Finish | Bright |
| Tap Grouping | Tap |
| Tap Length Standard | USCTI |
| Tap Limit | H3 |
| Tap Material | High Speed Steel |
| Tap Neck Length | 0.39 in, 0.39" |
| Tap Size | 1/4" |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | 1/4"-28 |
| Tap Thread Type | UNF |
| Thread | 1/4-28 |
| Thread Creation | Thread Cutting |
| Thread Form | UNF |
| Thread Length | 0.63", 0.63 in, 5/8" |
| Thread Length (Metric) | 16mm |
| Thread Limit | H3 |
| Thread Pitch | 28 |
| Thread Size | 1/4-28 UNF, 1/4", 1/4"-. |
| Thread Standard | Ground/UNF |
| Thread Tolerance | 2B |
| Tool Size | 1/4-28 UNF |
| Type | General Purpose Standard |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4350184 | 7.69 | 1 | 114 | | Greenfield Threading | 0.01 | 7.69 @ 1 |
 | MRO Supply | 6108207 | 7.69 | 7 | In Stock | | Greenfield Threading | | 7.69 @ 7 |
 | usmegastore.com | 326087 | 7.83 | 1 | In Stock | | Greenfield Threading | | 7.83 @ 1 |
 | Megadepot | 326087 | 7.83 | 1 | In Stock | | Greenfield Threading | | 7.83 @ 1 |
 | heavydutydepot.com | 326087 | 7.83 | 13 | In Stock | | Greenfield Threading | | 7.83 @ 13 |
 | rshughes.com | 662355-14063 | 8.59 | 1 | In Stock | 35 | Greenfield Threading | | 8.59 @ 1 |
