- mpnDE9PA191K87
- brandname: ITT Cannon
- manufacturername: ITT Cannon

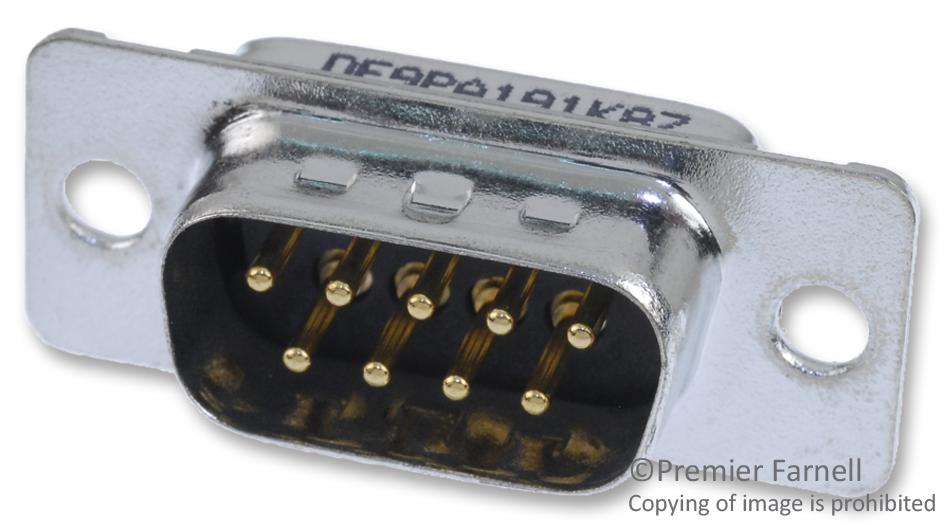

ITT CANNON DE9PA191K87
- Brand: ITT Cannon
- PartNumber: DE9PA191K87-ITT CANNON
- Model: DE9PA191K87-ITT CANNON
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: ITT CANNON
- Label: ITT CANNON
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 121073-2290 D |
| Amperage Rating | 7.5A |
| Backset Spacing | - |
| Base Product Number | DE9P |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Style | Plug, D-Sub, DSub |
| Connector Type | Plug, Male Pins, Plug ;. |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Machined |
| Contact Material | Copper Alloy |
| Contact Mating Life | 500 |
| Contact Plating | 30 microinches Gold Pla. |
| Contact Size | #20 |
| Contact Style | Pin |
| Contact Type | Signal |
| Contacts Supplied | Yes |
| Contacts, # of | 9 |
| Current Rating (Amps) | 5A |
| Dielectric Material | Thermoplastic |
| Export Class | EAR / EAR99 |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthread. |
| Grommet & Seals Material | Silicone |
| Ingress Protection | - |
| Insert Arrangement | 9 |
| Insert Material | Thermoplastic UL94VO |
| Material Flammability R. | UL94 V-0 |
| Mfr | ITT Cannon, LLC |
| Mounting Type | Cable or Box - Front Mo. |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature | -55?C ~ 125?C |
| Operating Temperature &. | -67 to +257 (-55 to +12. |
| Operating Voltage AC V . | 300 |
| Package | Bulk |
| Product Status | Active |
| RoHS | Yes |
| Series | Original D, Original D . |
| Shell Color | Silver |
| Shell Material | Steel, Steel, TinLead P. |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Shell Plating | Tin |
| Shell Size, Connector L. | 1 (DE, E) |
| Shielding | Yes |
| Special Features | Grounding Indents |
| Specification | MIL-DTL-24308 Style |
| Termination | Solder Cup, Solder Cups |
| Termination Method | PCB - Right Angle |
| Voltage Rating | - |
| Weight (g) | 6.47960 |
| Weight (lbs) | 0.01426 |
| Wire Gauge | 20-28 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| us.rs-online.com | 70524622 | 6.86 | 252 | In Stock | | ITT Cannon | | 6.86 @ 252 |
| Arrow | DE-9P A191 K87 | 9.968 | 1 | 1220 | | ITT / Cannon | | 9.968 @ 1 |
| Digi-Key | 2580855 | 17.34 | 1 | In Stock | | ITT Cannon, LLC | | 17.34 @ 1 |
 | Newark | 01K5395 | 18.03 | 2 | In Stock | | ITT CANNON | | 18.03 @ 1 |
