CAI - SQUARE D 9080GE6

B07J2TQNDB

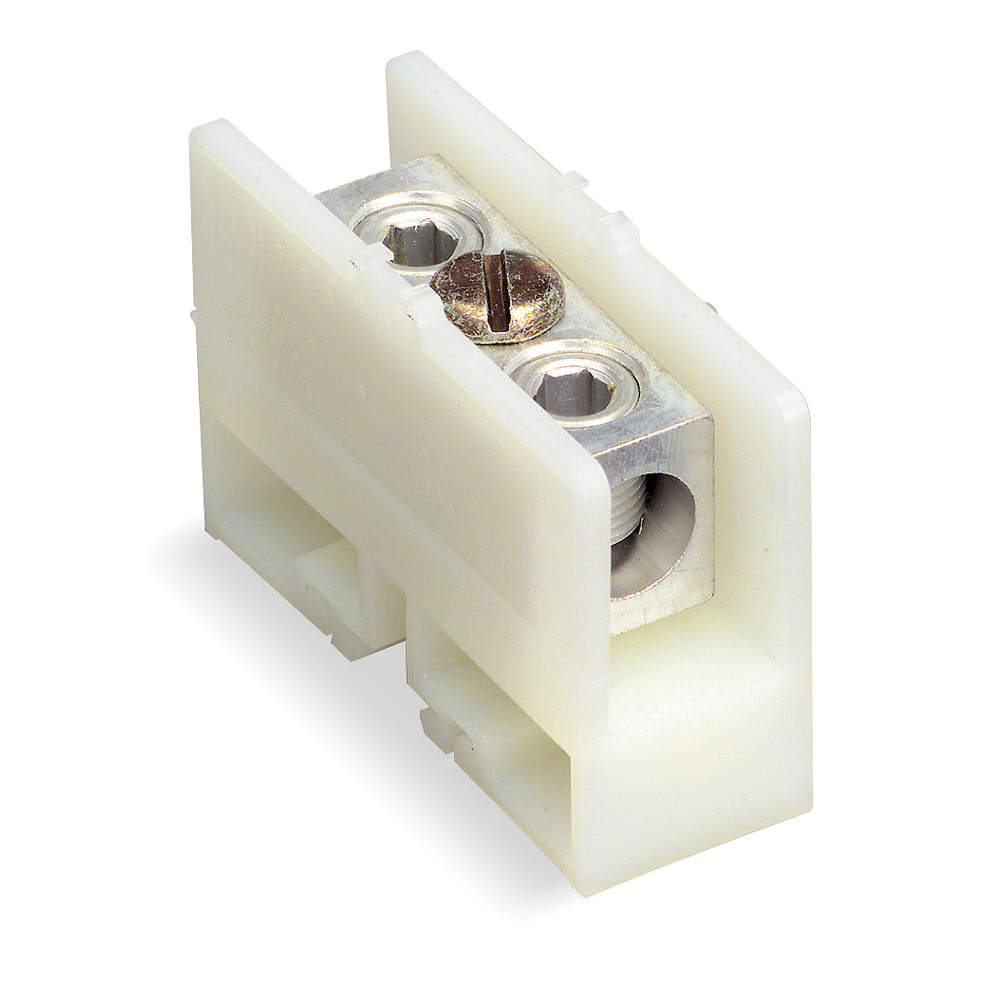

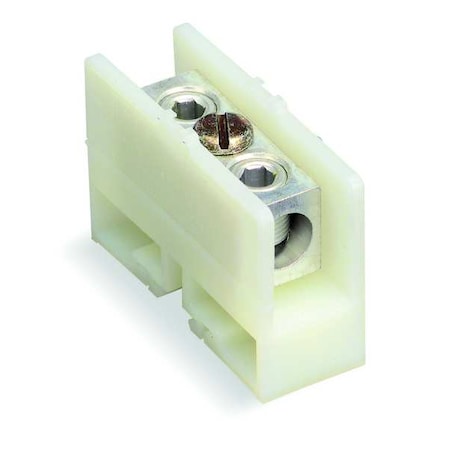

Square D Terminal Block, 600VAC Voltage, 255 Amps, 250 Kcmil Max. Wire Size, 6 AWG Min. Wire Size

Square D Terminal Block, 600VAC Voltage, 255 Amps, 250 Kcmil Max. Wire Size, 6 AWG Min. Wire Sizezoom

Attributes

Key Value
Amps255 A
Application9080G
Block MaterialNylon
BrandSquare D by Schneider E.
Catalog Number9080GE6
CategoryConnectors, Interconnec.
Channel Size35mm/GH
Circuit Protection TypeNone
Colornatural
Compatible Grainger Par.2DC94, 2DC97, 2DF49, 48.
Compatible Manufacturer.GH10, GH136, GH220, GH2.
ConnectionLug tin plated aluminiu.
Connection TypeScrew Clamp
Country of OriginMexico
Current255 A
Current - UL255 A
Depth3.32 in
DescriptionTERMINAL BLOCK 600V 255.
Detailed DescriptionTerminal Block Connecto.
Digi-Key Part Number4008-9080GE6-ND
Disconnect Type-
End Barrier5B373
End Barrier Compatibili.5B373
Features-
For Channel Rail Size35 mm
For Conductor MaterialAluminum, Copper
For Fuse Diameter3 1/32 in
For Maximum Wire Size250 KCMIL
For Minimum Wire Size6 AWG
Fuse Type-
Height2.34 in
Housing Colournatural
Housing MaterialNylon
IncludesEnd Clamps, Marking Str.
ItemTerminal Block
Item TypeTerminal Block
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.9080GE6
Manufacturer Standard L.1 Weeks
MaterialNylon block
Material - InsulationPolyamide (PA), Nylon
Material Flammability R.-
Max. Wire Size250 KCMIL
Maximum Operating Tempe.257 Degrees F
Maximum Voltage600V AC/DC
MfrSchneider Electric
Min. Wire Size6 AWG
Minimum Operating Tempe.-40 Degrees F
MountingDin Rail
Mounting TypeDIN
Number of Connections2
Number of Levels1
Number of Poles1
Number of Positions2
Number of Tiers2
Overall Depth1.17 in
Overall Length2.34 in
Overall Width3.32 in
PackageBox
Pieces per Foot10
Product StatusActive
RoHS CompliantYes
SeriesSquare D
Size1.17
Special FeaturesSET OF 10
StandardCSA file 62144 class 62.
StandardsUL94V2
Stripping Length-
Terminal - Width29.0mm
Terminal Block TypeSolderless Box Lug
Terminal MaterialTin Plated Aluminum
Terminal TypeSolderless Box Lug
Termination StyleScrew
Torque250 lb-in
TypeFeed Through
UL 94 Flammability Rati.V-2
UPC785901155072
Voltage600V AC
Voltage - IEC-
Voltage - UL600V
Voltage Rating600 V AC/DC
Warranty DescriptionContractual Warranty:18.
Width1.17 in
Wire Gauge or Range - A.1/0-12 AWG
Wire Gauge or Range - m.-
Wire SizeAWG 6...250 kcmil alumi.
Wire Size Ranges6 AWG - 250 kcmil

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG247798223.351279Square D0.323.35 @ 1
steinerelectric.com9681725.771In StockSquare D?25.77 @ 1
thumbzoomNewark17B324626.1510In StockSQUARE D BY SCHNEIDER ELECTRIC26.15 @ 10
thumbzoomDigi-Key1715467028.94310In StockSchneider Electric28.943 @ 10
thumbzoommostelectric.com9080GE634.813SQUARE D/TELEMECANIQUE34.8 @ 1
thumbzoomsustainablesupply.comC117771041.861In StockSquare D0.341.86 @ 1
us.rs-online.com7219493541.8819Square D41.88 @ 1
thumbzoomcrescentelectric.com15329346.561In StockSquare D by Schneider Electric46.56 @ 1
thumbzoomNational Supply Network6968243349.311In StockSquare D49.31 @ 1
thumbzoomRaptor SuppliesAF9FMQ58.20276151In StockSQUARE D58.2027615 @ 1
grainger.caSQD9080GE671.67334251In StockSQUARE D0.371.6733425 @ 1
standardelectricsupply.com2185133258.71In StockSquare D258.7 @ 1
