TSUBAKI 50LK1CL

mpn50LK1CL
brandname: Tsubaki
manufacturername: Tsubaki

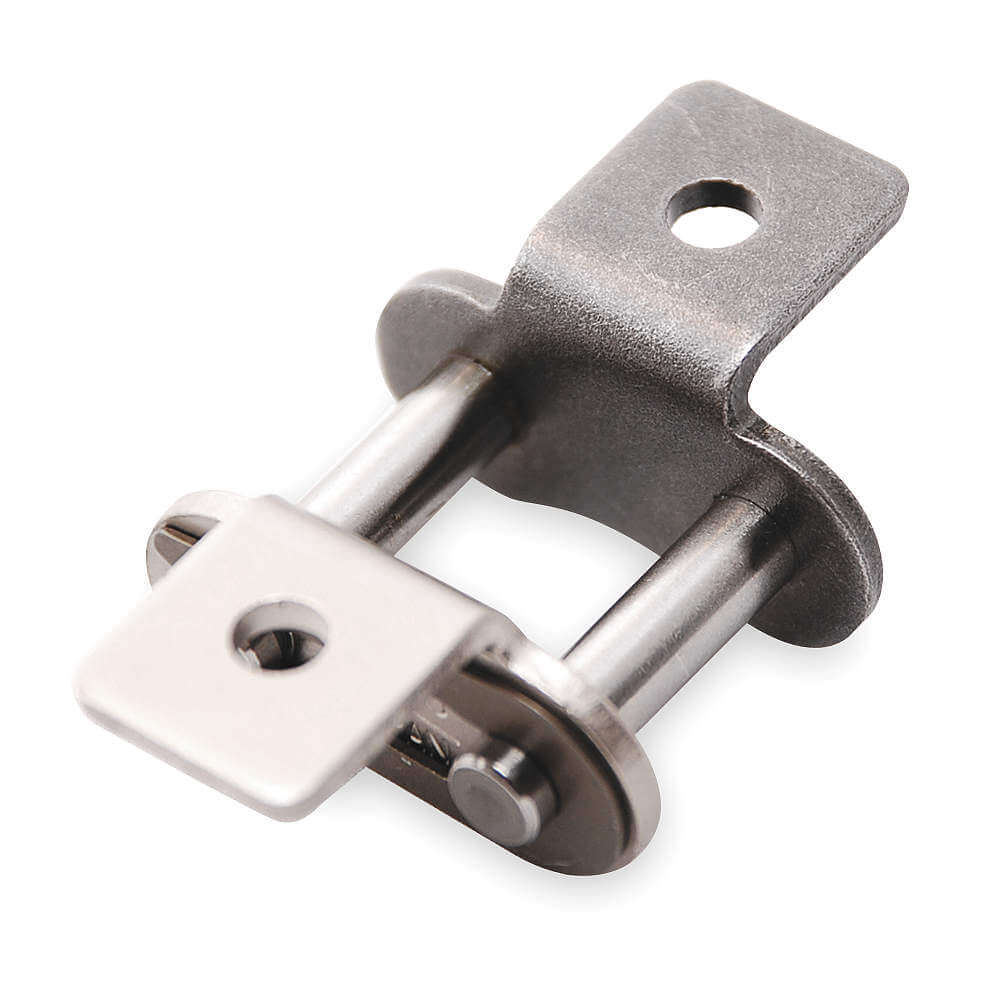

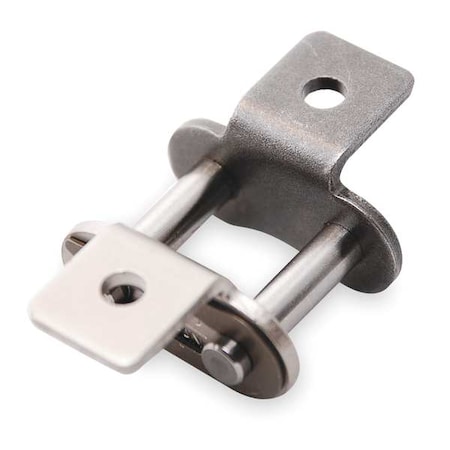

Tsubaki - 50LK1CL - Attachment Link: 50 Industry Chain Size, Carbon Steel, 5/8 in Industry Chain Pitch

Brand: TSUBAKI
PartNumber: 50LK1CL
PackageQuantity: 1
Manufacturer: Tsubaki
Label: Tsubaki

Attributes

Key	Value
Agency Compliance	American National Stand.
ANSI Chain Size	50L
Attachment Number	K-1
Attachment Type	Tab
Centerline to Attachmen.	0.472 in
Centerline to Hole Cent.	0.406 in
Chain Link Material	Carbon Steel
Chain Link Overall Width	0.878 in
Chain Number	50
Chain Overall Width	0.878 in
Chain Roller Dia.	0.4 in
Connecting End to Cente.	0.472 in
Connecting End to Cente.	0.472
Country of Origin (subj.	Japan
Extended Pin Diameter	0.2 in
Finish	black oxide
For Chain Number	50
For Chain Style	Lube-Free Roller Chains
For Chain Style (combin.	50 Black Oxide Steel
Industry Chain Pitch	5/8 in
Industry Chain Size	50
Inside Pin Dia.	0.2 in
Item	Attachment Link
Length (In.)	0.625
Link Style	Attachment Link
Link Type	Attachment Link
Lubrication	Self Lube
Material	Carbon Steel
Max. Allowable Load	1,430 lb
Max. Allowable Load (Lb.	1430
Maximum Operating Tempe.	302 Degrees F
Minimum Operating Tempe.	14 Degrees F
Number of Strands	Single
Number of Strands (broa.	Single
Number of Tab Holes	1
Outside Pin Dia.	0.2 in
Outside Pin Dia. (In.)	0.200
Overall Width (In.)	0.878
Pin Contruction	Riveted Pin
Pin Length	0.878 in
Pin Length (In.)	0.878
Pin Link Plate Thickness	0.08 in
Pin Link Plate Thicknes.	0.080
Pin Type	Riveted
Pitch	0.625"
Plate Height	0.591 in
Plate Thickness	0.375 in
Rivet End to Center Line	0.406 in
Rivet End to Center Lin.	0.406
Roller Chain Link Item	Attachment Link
Roller Chain Link Type	K-1 Lube Free
Roller Dia. (In.)	0.400
Roller Diameter	25/64 in
Roller Link Plate Height	0.591 in
Roller Link Plate Heigh.	0.591
Standards	ANSI
Temp. Range	14 Degrees to 302 Degr.
Tensile Strength	7,050 lb
Tensile Strength (Lb.)	7050
Type	K-1 Attachment
Width Between Roller Li.	0.375 in
Width Between Roller Li.	0.375

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Purvis	50LK1 C/L LAMBDA	13.2	1	5		Tsubaki		13.2 @ 5
motionindustries.com	07135888	17.34	1	5		Tsubaki (UST)		17.34 @ 5
Zoro	G2923225	40.66	1	5	26	Tsubaki	0.25	40.66 @ 5
sustainablesupply.com	C1641210	63.68	1	5		Tsubaki	0.25	63.68 @ 5
Raptor Supplies	AB4KFZ	134.1378675	1	5		TSUBAKI		134.1378675 @ 5
