- mpnC20744
- brandname: Cle-Line
- manufacturername: Cle-Line

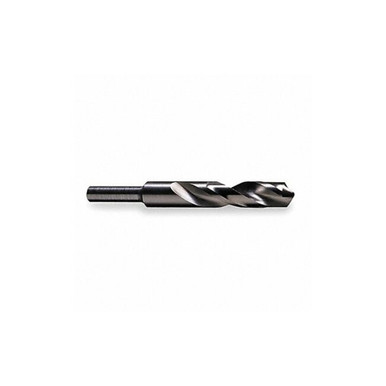

Cle-Line C20744 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 11/16" Drill Diameter
- Brand: Cle-line
- PartNumber: C20744
- Model: C20744
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries, Inc.
- Label: Greenfield Industries, Inc.
Attributes
| Key | Value |
|---|
| Applicable Materials | Iron Based Ferrous Meta. |
| Application | For Alloy And Carbon St. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 397 |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.6875 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.6875" |
| Diameter (Fraction) | 11/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 11/16 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.6875 in |
| Drill Size - Fraction | 11/16 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1813 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 3/4 in |
| Mpn | C20744 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1813 |
| Shank Configuration | Reduced |
| Shank Dia. | 1/2 in |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.6435" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Round, Reduced |
| SKU | C20744, ZO-G2429411 |
| Style | 1813 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 11/16" |
| Type | General Purpose |
| UPC | 697334207443, 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543737 | 16.75 | 1 | In Stock | | Cle-Line | | 16.75 @ 1 |
 | Megadepot | C20744 | 17.68 | 1 | In Stock | | Cle-Line | | 17.68 @ 1 |
 | usmegastore.com | C20744 | 17.82 | 1 | In Stock | | Cle-Line | | 17.82 @ 1 |
 | heavydutydepot.com | C20744 | 17.82 | 6 | In Stock | | Cle-Line | | 17.82 @ 6 |
 | MRO Supply | 6123998 | 19.85 | 3 | In Stock | | Cle-Line | | 19.85 @ 3 |
 | Zoro | G2429411 | 20.09 | 1 | 347 | | Cle-Line | 0.35 | 20.09 @ 1 |
 | sustainablesupply.com | C1465072 | 27.41 | 1 | In Stock | | Cle-Line | 0.35 | 27.41 @ 1 |
 | simsupply.com | ZO-G2429411 | 27.58 | 1 | 397 | | Cle-Line | | 27.58 @ 1 |
 | Raptor Supplies | AE7DPE | 27.6544125 | 1 | In Stock | | CLE-LINE | | 27.6544125 @ 1 |
 | imsbolt.com | C20744 | 32.71 | 1 | In Stock | | CLE-LINE | | 32.71 @ 1 |
 | National Supply Network | 62692827 | 34.91 | 1 | In Stock | | Cle-Line | | 34.91 @ 1 |
