- mpnC20745
- brandname: CLE-LINE
- manufacturername: CLE-LINE

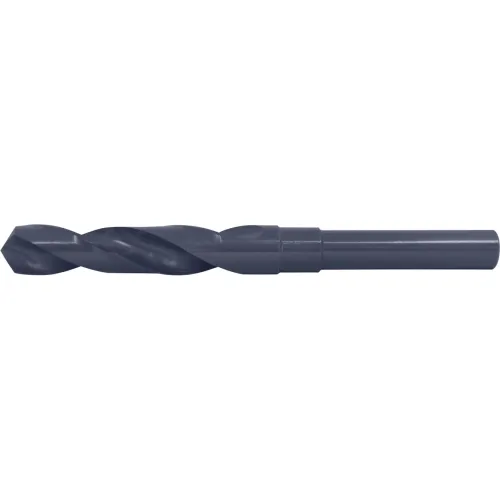

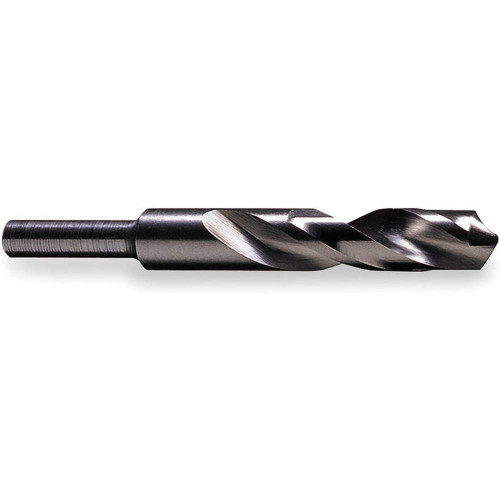

Cle-Line C20745 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 45/64" Drill Diameter
- Brand: Cle-line
- PartNumber: C20745
- Model: C20745
- Color: Black Oxide
- Size: 45/64"
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Iron Based Ferrous Meta. |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.7031 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.703125, 0.7031" |
| Diameter (Fraction) | 45/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 45/64 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.7031 in |
| Drill Size - Fraction | 45/64 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Reduced Shank Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 2 1/2 in |
| Number of Flutes | 2 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1813 |
| Shank Configuration | Reduced |
| Shank Dia. | 1/2 in |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.6591" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 0.5, 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Round, Reduced |
| SKU | C20745 |
| Style | 1813 |
| Surface Condition | Steam Oxide |
| Tool Size | 45/64" |
| Type | General Purpose |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | usmegastore.com | C20745 | 18.5 | 1 | In Stock | | Cle-Line | | 18.5 @ 1 |
 | Megadepot | C20745 | 18.64 | 1 | In Stock | | Cle-Line | | 18.64 @ 1 |
 | heavydutydepot.com | C20745 | 18.64 | 6 | In Stock | | Cle-Line | | 18.64 @ 6 |
 | Global Industrial | WBB2543810 | 18.75 | 1 | In Stock | | Cle-Line | | 18.75 @ 1 |
 | Zoro | G2886877 | 19.39 | 1 | 140 | | Cle-Line | 0.4 | 19.39 @ 1 |
 | MRO Supply | 6123999 | 20.95 | 3 | In Stock | | Cle-Line | | 20.95 @ 3 |
 | Raptor Supplies | AB9CNX | 29.1740085 | 1 | In Stock | | CLE-LINE | | 29.1740085 @ 1 |
 | sustainablesupply.com | C2974459 | 29.82 | 1 | In Stock | | Cle-Line | 0.4 | 29.82 @ 1 |
 | imsbolt.com | C20745 | 34.52 | 1 | In Stock | | CLE-LINE | | 34.52 @ 1 |
