- mpnC20757
- brandname: CLE-LINE
- manufacturername: CLE-LINE

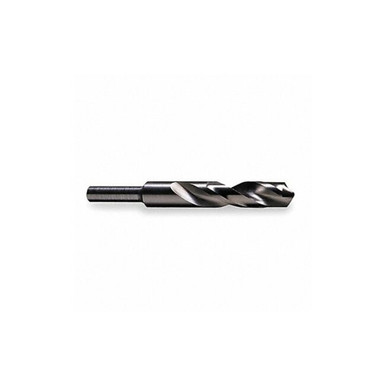

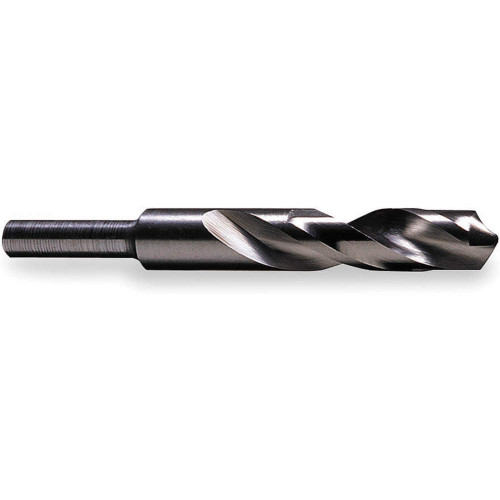

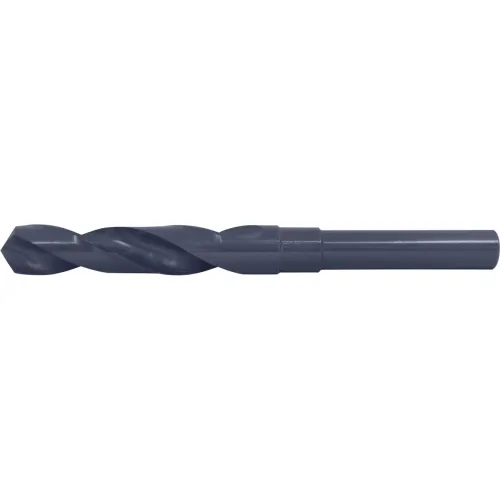

Cle-Line C20757 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 1" Drill Diameter
- Brand: Cle-line
- PartNumber: C20757
- Model: C20757
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries, Inc.
- Label: Greenfield Industries, Inc.
Attributes
| Key | Value |
|---|
| Application | For Alloy And Carbon St. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 54 |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 1.0000 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 1.0000" |
| Diameter (Fraction) | 1" |
| Diameter (Metric) | 25.40mm |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 1 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28?, 28 Degrees |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Item? | 5X997 |
| List Number | 1813 |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 4 in |
| Measurement System | Fractional Inch |
| Mfr. Model? | C20757 |
| Mpn | C20757 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118? |
| Point Style | Radial |
| Point Type | Conventional Point |
| Primary Material Applic. | Cast Iron, Steel, Cast . |
| Primary Material Applic. | K, P, K; P |
| Series | 1813 |
| Shank Configuration | Reduced |
| Shank Dia. | 3/8 in |
| Shank Length | 2 1/4 in, 2.2500", 2-1/. |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.9560" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000" |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Round |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | No |
| SKU | C20757, ZO-G1934886 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 1" |
| UNSPSC | 23171609 |
| UPC | 697334207573, 6.97E+11 |
