- mpnC21074
- brandname: Cle-Line
- manufacturername: Cle-Line

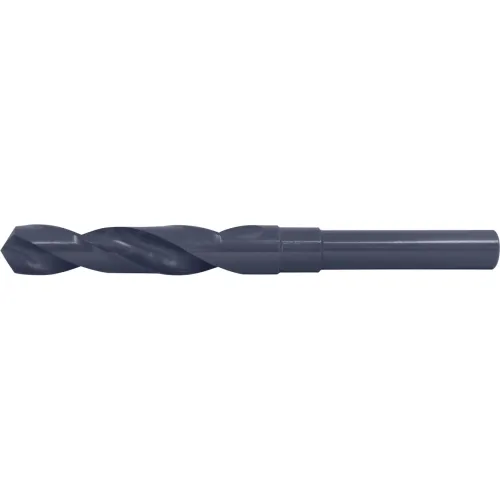

Cle-Line C21074 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 15.00 mm Drill Diameter


- Brand: Cle-line
- PartNumber: C21074
- Model: C21074
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
Key | Value |
---|
Applicable Materials | Iron Based Ferrous Meta. |
Application | For Alloy And Carbon St. |
Coolant Fed | Non-Coolant Through |
Cutting Depth | 79.38 mm |
Cutting Direction | Right Hand |
Cutting Edge Material | HSS |
Decimal Equivalent | 0.5906 |
Depth x Dia. Ratio | 4xD |
Depth:Dia. Ratio | 4xD |
Diameter | 0.5906" |
Diameter (Metric) | 15.00mm |
Drill Bit Dimension Type | Metric |
Drill Bit Finish | Black Oxide |
Drill Bit Grouping | Individual |
Drill Bit Point Angle | 118 Degrees |
Drill Bit Point Type | Conventional Point |
Drill Bit Size | 15.00 mm |
Drill Construction | General Purpose |
Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
Drill Size - Decimal In. | 0.5906 in |
Drill Size - Metric | 15 mm |
Drill Size System | Metric |
Drill Style | Silver & Deming Drill |
Finish | Black Oxide |
Finish - Machining | Black Oxide |
Flute Count (NOF) | 2 |
Flute Length | 3 1/8 in, 3.1250", 79.3. |
Flute Length (Metric) | 79.38mm |
Flute Type | Spiral |
Hand of Cut | Right |
Hand of Spiral | Right |
Helix Angle | CW, 28 Degrees |
Item | Reduced Shank Drill Bit |
Material | HSS |
Material - Machining | High Speed Steel |
Maximum Drilling Depth | 2 11/32 in |
Measurement System | Metric |
Measurement Type | Metric |
Number of Flutes | 2 |
Overall Length | 152.40 mm, 152.4 mm, 6.. |
Overall Length (Metric) | 152.40mm |
Overall Length (OAL) | 152.4 mm |
Point Angle | 118 deg, 118? |
Point Shape | Radial |
Point Style | Radial |
Point Type | Radial |
Primary Material Applic. | Cast Iron, Steel |
Primary Material Applic. | K, P |
Series | 1813M, 1813 |
Series/List # | 1813M |
Shank Configuration | Reduced |
Shank Dia. | 12.70 mm |
Shank Length | 2.2500", 57.15 mm |
Shank Length (Metric) | 57.15mm |
Shank Neck Diameter | 0.5466" |
Shank Neck Length | 0.5000" |
Shank Size | 0.5000", 12.7 mm |
Shank Size (Metric) | 12.70mm |
Shank Type | Reduced |
Shank Type - Machining | Straight |
Silver & Deming Drill | Yes |
SKU | C21074 |
Spiral Direction | Right Hand |
Standards | Not Rated |
Style | 1813M |
Surface Condition | Steam Oxide |
Tool Size | 15.00mm, 15mm |
Tool Type | Drill |
Type | General Purpose |
UPC | 6.97E+11 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | Zoro | G4958515 | 19.49 | 1 | In Stock | 10 | Cle-Line | 0.32 | 19.49 @ 1 |
  | Global Industrial | WBB2543688 | 19.5 | 1 | In Stock | | Cle-Line | | 19.5 @ 1 |
  | Megadepot | C21074 | 19.54 | 1 | In Stock | | Cle-Line | | 19.54 @ 1 |
  | heavydutydepot.com | C21074 | 19.54 | 6 | In Stock | | Cle-Line | | 19.54 @ 6 |
  | usmegastore.com | C21074 | 19.94 | 1 | In Stock | | Cle-Line | | 19.94 @ 1 |
  | MRO Supply | 6124078 | 23.0 | 3 | In Stock | | Cle-Line | | 23.0 @ 3 |
| grainger.ca | GNFC21074 | 30.28788438 | 1 | In Stock | | CLE-LINE | 1.0 | 30.28788438 @ 1 |
  | freertool.com | FTS-CL70C21074 | 34.45 | 1 | In Stock | | Cle-Line | | 34.45 @ 1 |
  | imsbolt.com | C21074 | 37.92 | 1 | In Stock | | CLE-LINE | | 37.92 @ 1 |
