- mpnC22852
- brandname: Cle-Line
- manufacturername: Cle-Line

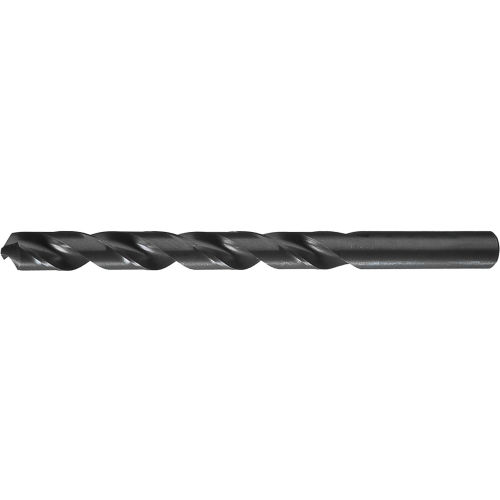

Cle-Line C22852 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 5.40 mm Drill Diameter (Pack of 12)
- Brand: Cle-line
- PartNumber: C22852
- Model: C22852
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2126 |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2126" |
| Diameter (Metric) | 5.40mm |
| Drill Bit Grouping | Individual |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 5.40 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0639mm |
| Drill Size - Decimal In. | 0.2126 in |
| Drill Size - Metric | 5.4 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 2.2441", 57.00 mm, 57 mm |
| Flute Length (Metric) | 57.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 27/32 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 93.00 mm, 3.6614", 93 mm |
| Overall Length (Metric) | 93.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Cast Iron, St. |
| Primary Material Applic. | K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 5.4 mm |
| Shank Length | 36 mm, 1.4173" |
| Shank Length (Metric) | 36.00mm |
| Shank Size | 0.2126", 5.4 mm Dia x 3. |
| Shank Size (Metric) | 5.40mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M, DIN 340 |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 5.4mm, 5.40mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C22852 | 1.38 | 1 | 12 | | Cle-Line | | 1.38 @ 12 |
 | heavydutydepot.com | C22852 | 1.38 | 73 | 12 | | Cle-Line | | 1.38 @ 73 |
 | MRO Supply | 6124421 | 1.85 | 28 | 12 | | Cle-Line | | 1.85 @ 28 |
 | Zoro | G4942336 | 2.0 | 12 | 12 | 10 | Cle-Line | 0.03 | 2.0 @ 12 |
 | usmegastore.com | C22852 | 2.05 | 1 | 12 | | Cle-Line | | 2.05 @ 12 |
| grainger.ca | GNFC22852 | 2.0685471 | 1 | 12 | | CLE-LINE | 0.026 | 2.0685471 @ 12 |
 | Global Industrial | WBB2545263 | 17.52 | 1 | 12 | | Cle-Line | | 17.52 @ 12 |
