- mpnC22893
- brandname: Cle-Line
- manufacturername: Cle-Line

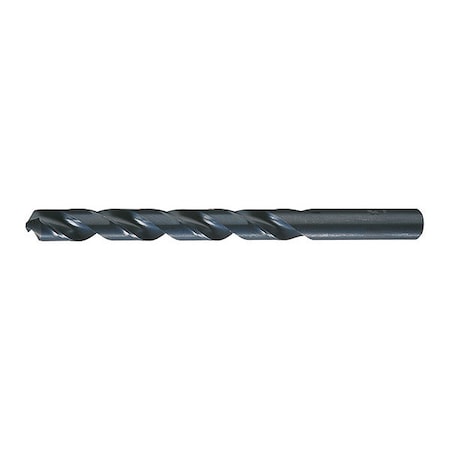

Cle-Line C22893 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 9.50 mm Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C22893
- Model: C22893
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3780 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3740" |
| Diameter (Metric) | 9.50mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 9.50 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1124mm |
| Drill Size - Decimal In. | 0.374 in |
| Drill Size - Metric | 9.5 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 3.1890", 81 mm, 81.00mm |
| Flute Length (Metric) | 81.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| List Number | 1899 |
| Material | HSS |
| Maximum Drilling Depth | 2 25/64 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 4.9213", 125 mm, 125.00. |
| Overall Length (Metric) | 125.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 9.5 mm |
| Shank Length | 1.7323", 44 mm |
| Shank Length (Metric) | 44.00mm |
| Shank Size | 9.5 mm Dia x 44 mm L, 0. |
| Shank Size (Metric) | 9.50mm |
| Shank Type | Straight |
| Standards | DIN 338 |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 9.5mm, 9.50mm |
