- mpnC22985
- brandname: Cle-Line
- manufacturername: Cle-Line

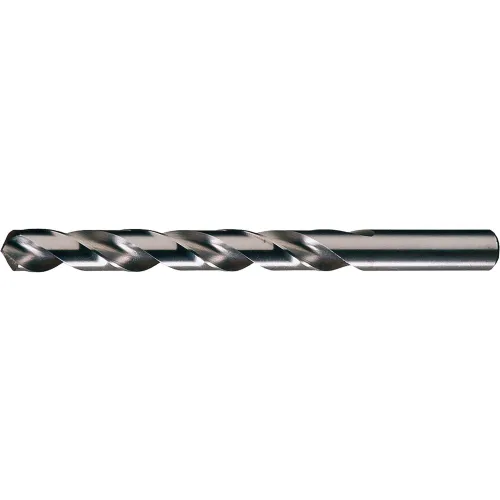

Cle-Line C22985 General Purpose Jobber Length Drill, High Speed Steel, Bright Finish, Straight Shank, 118-Degree Radial Point, Letter Size Q Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C22985
- Model: C22985
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3320 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3320" |
| Diameter (Wire/Let) | Q |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Bright (Uncoated) |
| Drill Bit Grouping | Drill Bit, Individual |
| Drill Bit Point Angle | 118 Degrees, 118 Degre. |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | Q |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in,. |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0000 in |
| Drill Size - Decimal In. | 0.332 in |
| Drill Size - Letter | Q |
| Drill Size System | Letter |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 3 7/16 in, 3.4375", 3-7. |
| Flute Length (Metric) | 87.31mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| List Number | 1898 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1 5/16 in, 2 9/16 in |
| Measurement System | Letter |
| Number of Flutes | 2 |
| Overall Length | 4.7500", 4-3/4 in, 4 3/. |
| Overall Length (Metric) | 120.65mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, N, P |
| Series | 1898 |
| Shank Configuration | Straight |
| Shank Dia. | 21/64 in |
| Shank Length | 1 5/16 in, 1.3125" |
| Shank Length (Metric) | 33.34mm |
| Shank Size | 0.332 in Dia x 1.312 in. |
| Shank Size (Metric) | 8.43mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M, ASME B94.. |
| Style | 1898 |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | Q |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544759 | 3.2062 | 6 | 6 | | Cle-Line | | 3.2062 @ 6 |
 | Megadepot | C22985 | 3.58 | 1 | 6 | | Cle-Line | | 3.58 @ 6 |
 | heavydutydepot.com | C22985 | 3.58 | 28 | 6 | | Cle-Line | | 3.58 @ 28 |
 | usmegastore.com | C22985 | 3.69 | 1 | 6 | | Cle-Line | | 3.69 @ 6 |
 | MRO Supply | 6124524 | 3.82 | 14 | 6 | | Cle-Line | | 3.82 @ 14 |
 | Zoro | G4940017 | 23.1 | 1 | 6 | | Cle-Line | 0.08 | 23.1 @ 6 |
| Grainger | 50CP44 | 29.7 | 1 | 6 | | CLE-LINE | | 29.7 @ 6 |
