Cle-line C23684

mpnC23684
brandname: Cle-Line
manufacturername: Cle-Line

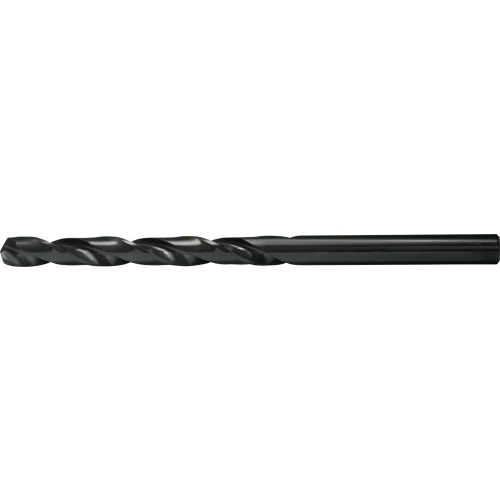

Cle-Line C23684 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 24 (Pack of 12)

Cle-Line C23684 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 24 (Pack of 12)

zoom

Brand: Cle-line
PartNumber: C23684
Model: C23684
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Angle Iron, Cast Iron, .
Coolant Fed	Non-Coolant Through
Cutting Depth	2 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.1520
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.1520"
Diameter (Wire/Let)	24
Drill Bit Point Angle	135 Degrees
Drill Bit Size	#24
Drill Construction	Heavy-Duty
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Extra Long
Drill Point Length	0.0315 in
Drill Size - Decimal In.	0.152 in
Drill Size - Wire	#24
Drill Size System	Wire
Drill Style	Aircraft Extension Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	2 in, 2.0000"
Flute Length (Metric)	50.80mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	41/64 in
Measurement System	Wire, Imperial
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Primary Material Applic.	P
Series	1803
Shank Configuration	Straight
Shank Dia.	9/64 in
Shank Length	4.0000", 4 in
Shank Length (Metric)	101.60mm
Shank Size	0.1520", 0.152 in
Shank Size (Metric)	3.86mm
Shank Type	Straight
Shank Type - Machining	Straight
Standards	ASME B94.11M
Style	1803
Surface Condition	Steam Oxide
Tool Size	#24
Type	Type B Extended Length
