Cle-line C23685

mpnC23685
brandname: Cle-Line
manufacturername: Cle-Line

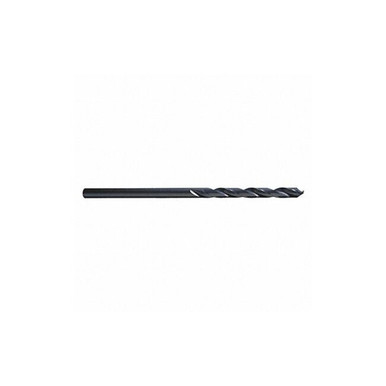

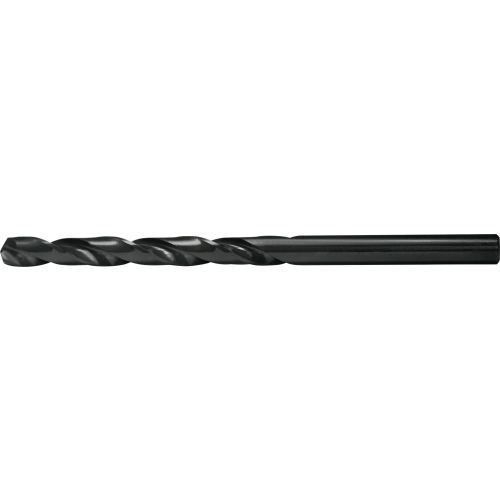

Cle-Line C23685 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 25 (Pack of 12)

Cle-Line C23685 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 25 (Pack of 12)

zoom

Brand: Cle-line
PartNumber: C23685
Model: C23685
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Angle Iron, Cast Iron, .
Brand	Cle-Line
Coolant Fed	Non-Coolant Through
Current Stock	42
Cutting Depth	1-7/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.1495
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.1495"
Diameter (Wire/Let)	25
Drill Bit Point Angle	135 Degrees
Drill Bit Size	#25
Drill Construction	Heavy-Duty
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Extra Long
Drill Point Length	0.031 in
Drill Size - Decimal In.	0.1495 in
Drill Size - Wire	#25
Drill Size System	Wire
Drill Style	Aircraft Extension Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	1 7/8 in, 1-7/8 in, 1.8.
Flute Length (Metric)	47.63mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
International Shipping	No
Item	Extra Long Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	19/32 in
Measurement System	Wire, Imperial
Mpn	C23685
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Primary Material Applic.	Steel
Series	1803
Shank Configuration	Straight
Shank Dia.	9/64 in
Shank Length	4 1/8 in, 4.1250"
Shank Length (Metric)	104.77mm
Shank Size	0.1495", 0.1495 in
Shank Size (Metric)	3.80mm
Shank Type	Straight
Shank Type - Machining	Straight
SKU	ZO-G4949430
Standards	ASME B94.11M
Style	1803
SubCategory	Machining
Surface Condition	Steam Oxide
Tool Size	#25
Type	Type B Extended Length
UPC	697334236856

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	C23685	2.54	1	12		Cle-Line		2.54 @ 12
	heavydutydepot.com	C23685	2.54	40	12		Cle-Line		2.54 @ 40
	usmegastore.com	C23685	3.33	1	12		Cle-Line		3.33 @ 12
	MRO Supply	6125001	3.43	15	12		Cle-Line		3.43 @ 15
	Zoro	G4949430	3.59	1	305		Cle-Line	0.35	3.59 @ 12
	simsupply.com	ZO-G4949430	10.92	1	42		Cle-Line		10.92 @ 12
	Global Industrial	WBB2543361	32.4	1	12		Cle-Line		32.4 @ 12
	AmazonSC	B00J9FK48A	40.09	1	12		Cle-line		40.09 @ 12
