Cle-line C23687

mpnC23687
brandname: Cle-Line
manufacturername: Cle-Line

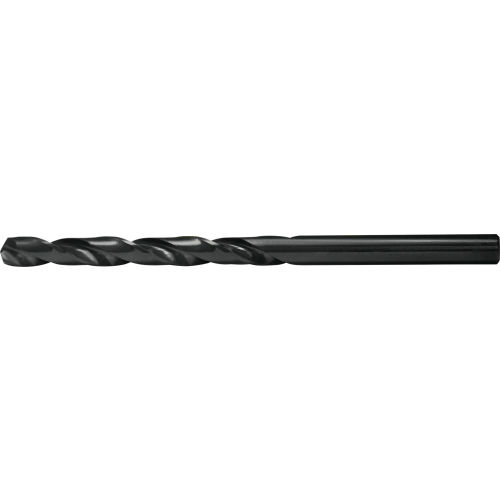

Cle-Line C23687 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 27 (Pack of 12)

Cle-Line C23687 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 27 (Pack of 12)

zoom

Brand: Cle-line
PartNumber: C23687
Model: C23687
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Angle Iron, Cast Iron, .
Coolant Fed	Non-Coolant Through
Cutting Depth	1-7/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.1440
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.1440"
Diameter (Wire/Let)	27
Drill Bit Point Angle	135 Degrees
Drill Bit Size	#27
Drill Construction	Heavy-Duty
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Extra Long
Drill Point Length	0.0298 in
Drill Size - Decimal In.	0.144 in
Drill Size - Wire	#27
Drill Size System	Wire
Drill Style	Aircraft Extension Drill
Finish	Black Oxide/Steam Oxide
Flute Length	1 7/8 in, 1-7/8 in, 1.8.
Flute Length (Metric)	47.63mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	9/16 in
Measurement System	Imperial
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Primary Material Applic.	Steel
Primary Material Applic.	P
Series	1803
Shank Configuration	Straight
Shank Dia.	9/64 in
Shank Length	4 1/8 in, 4.1250"
Shank Length (Metric)	104.77mm
Shank Size	0.144 in, 0.1440"
Shank Size (Metric)	3.66mm
Shank Type	Straight
Shank Type - Machining	Straight
Spiral Direction	Right Hand
Standards	ASME B94.11M
Style	1803
Surface Condition	Steam Oxide
Tool Size	#27
Type	Type B Extended Length

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	C23687	2.43	1	12		Cle-Line		2.43 @ 12
	heavydutydepot.com	C23687	2.43	42	12		Cle-Line		2.43 @ 42
	usmegastore.com	C23687	3.17	1	12		Cle-Line		3.17 @ 12
	MRO Supply	6125003	3.27	16	12		Cle-Line		3.27 @ 16
	Zoro	G4949415	3.39	12	12	10	Cle-Line	0.14	3.39 @ 12
	Global Industrial	WBB2543364	31.08	1	12		Cle-Line		31.08 @ 12
