Cle-line C23694

mpnC23694
brandname: Cle-Line
manufacturername: Cle-Line

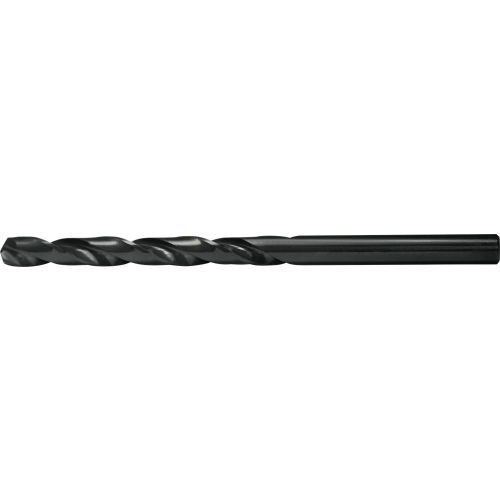

Cle-Line C23694 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 34 (Pack of 12)

Cle-Line C23694 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 34 (Pack of 12)

zoom

Brand: Cle-line
PartNumber: C23694
Model: C23694
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Angle Iron, Cast Iron, .
Coolant Fed	Non-Coolant Through
Cutting Depth	1-1/2 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.1110
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.1110"
Diameter (Wire/Let)	34
Drill Bit Point Angle	135 Degrees
Drill Bit Size	#34
Drill Construction	Heavy-Duty
Drill Diameter Tolerance	+0.0000 in /-0.0005 in
Drill Length Class	Extra Long
Drill Point Length	0.023 in
Drill Size - Decimal In.	0.111 in
Drill Size - Wire	#34
Drill Size System	Wire
Drill Style	Aircraft Extension Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	1 1/2 in, 1-1/2 in, 1.5.
Flute Length (Metric)	38.10mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	7/16 in
Measurement System	Imperial
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Primary Material Applic.	Steel
Primary Material Applic.	P
Series	1803
Shank Configuration	Straight
Shank Dia.	7/64 in
Shank Length	4.5000", 4 1/2 in
Shank Length (Metric)	114.30mm
Shank Size	0.1110", 0.111 in
Shank Size (Metric)	2.82mm
Shank Type	Straight
Shank Type - Machining	Straight
Standards	ASME B94.11M
Style	1803
Surface Condition	Steam Oxide
Tool Size	#34
Type	Type B Extended Length

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	C23694	2.23	1	12		Cle-Line		2.23 @ 12
	heavydutydepot.com	C23694	2.23	45	12		Cle-Line		2.23 @ 45
	MRO Supply	6125010	2.98	17	12		Cle-Line		2.98 @ 17
	usmegastore.com	C23694	2.99	1	12		Cle-Line		2.99 @ 12
	Zoro	G4949336	3.13	12	12	10	Cle-Line	0.02	3.13 @ 12
	Global Industrial	WBB2543485	28.32	1	12		Cle-Line		28.32 @ 12
