Cleveland C14589

B01BH7CW3C

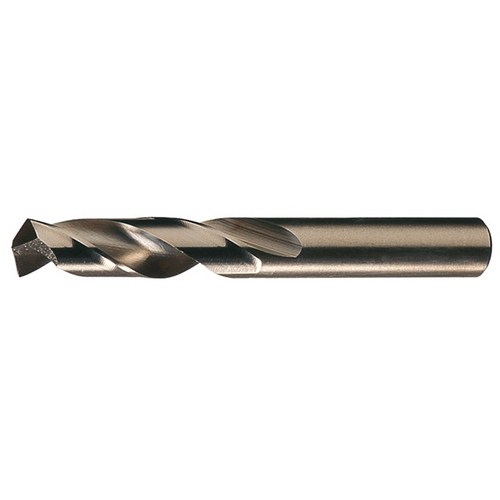

Screw Machine Drill Bit: #23 Drill Bit Size, 10 in Flute Lg, 2 1/16 in Overall Lg, Cobalt - 1 Each

Screw Machine Drill Bit: #23 Drill Bit Size, 10 in Flute Lg, 2 1/16 in Overall Lg, Cobalt - 1 Eachzoom

Attributes

Key Value
Applicable MaterialsCarbon Steel, Cast Iron.
Bit Dia.#23
ConstructionHeavy-Duty
Cutting Depth1 in
Cutting DirectionRight Hand
Cutting Edge MaterialM42 HSS-Co 8
Decimal Equivalent0.1540" / 3.91mm, 0.1540
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter Wire23
Drill Bit Dimension TypeWire
Drill Bit FinishStraw/Bronze
Drill Bit GroupingDrill Bit
Drill Bit MaterialCobalt
Drill Bit Point Angle135 Degrees
Drill Bit Size#23
Drill Diameter Measurem.Imperial
Drill Diameter Tolerance+0.0000 in /-0.0007 in
Drill Length ClassScrew Machine Length
Drill Point Length0.0319 in
Drill Size - Decimal In.0.154 in
Drill Size - Wire#23
Drilling Length1"
FinishStraw/Gold Oxide
Flute Length1 in, 10 in
Flute TypeRight Spiral, Spiral
Hand of Spiral CutRHS / RHC
ItemScrew Machine Drill Bit
Length of Flute1.0000" / 25.40mm
List Style2133
MaterialM42 HSS-Co 8, HSS-CO 8%.
Maximum Drilling Depth1 in
Number of Flutes2
Overall Length2.0625" / 52.39mm, 2 1/.
Point135? Split
Point Angle135 deg
Point TypeSplit
Series2133
ShankStraight
Shank Dia.9/64 in
Shank Length1 1/16 in
Shank Size0.1540" / 3.91mm, 0.154.
Shank TypeStraight
Sizes Included#23
Style2133
Surface ConditionStraw, Straw / Gold Oxi.
Tool Size#23
TypeGeneral Purpose Heavy D.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply61109762.891310Cleveland2.89 @ 13
thumbzoomZoroG30017283.35110Cleveland0.013.35 @ 10
thumbzoomsustainablesupply.comC29746643.55110Cleveland0.013.55 @ 10
thumbzoomMegadepotC145893.6110Cleveland3.6 @ 10
thumbzoomusmegastore.comC145893.75110Cleveland3.75 @ 10
thumbzoombscsource.comC145894.79110Cleveland4.79 @ 10
thumbzoomNational Supply Network637932365.909110Cleveland5.909 @ 10
