FirstPower 4FRC9

mpn4FRC9
brandname: Power First
manufacturername: Power First

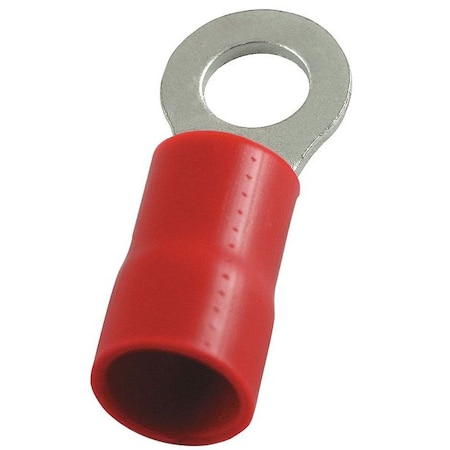

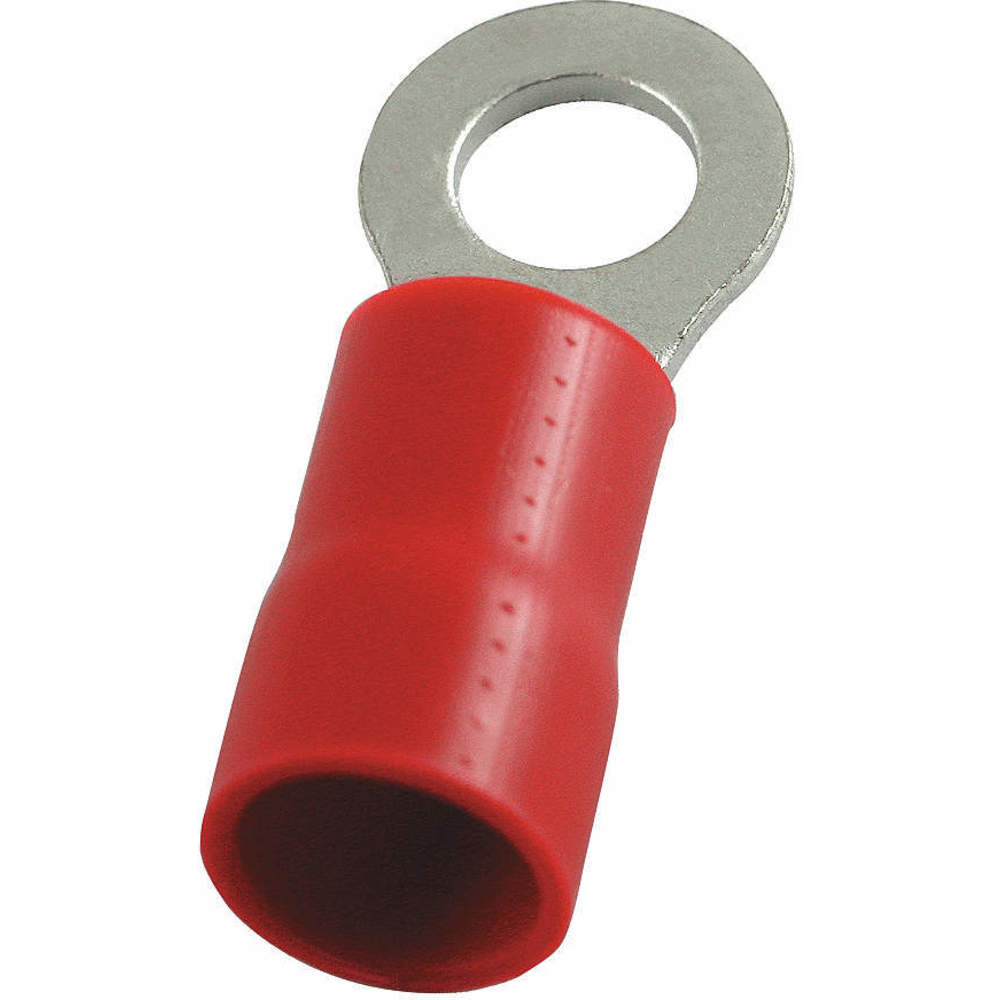

Ring Term, Vinyl, 1/4 in., 1.26 in., PK25

Ring Term, Vinyl, 1/4 in., 1.26 in., PK25

zoom

Brand: FirstPower
PartNumber: 4FRC9
Model: 4FRC9
PackageQuantity: 1
Manufacturer: POWER FIRST
Label: POWER FIRST

Attributes

Key	Value
Barrel Inside Diameter	0.18 in
Barrel Length	0.66 in
Barrel Outside Diameter	0.34 in
Barrel Size	Standard
Barrel Style	Crimp
Compatible with Product.	Insulated Stranded Copp.
Connection Material	Copper
Connection Orientation	Straight
Contact Finish	Tin
Contact Material	Copper
For Wire Size	8 AWG
For Wire Sizes	8 AWG to 8 AWG
Hole Diameter	0.25 in
Insulation Color	Red
Insulation Colour	Red
Insulation Coverage	Partial Coverage
Insulation Material	Vinyl
Insulation Type	Vinyl
Item	Ring Terminal
Max. Temp.	221 Degrees F
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	600V
Maximum Wire Size	8 AWG
Minimum Operating Tempe.	221 Degrees F
Minimum Wire Size	8 AWG
Overall Length	1.24 in
Ring Width Ranges	0.26 - 0.50 inches
RoHS Compliant	Yes
Seam	Brazed
Seam Style	Brazed
Standards	UL/cUL/RoHS
Strip Length	1/2 in
Stud Size	1/4 in
Terminal Connection	Crimp
Terminal Shape	Ring Terminal
Termination Style	Crimp
Tongue Length	0.58 in
Tongue Thickness	0.05 in
Tongue Width	0.47 in
Tongue Width - Wire Con.	0.47 in
UL 94 Flammability Rati.	V-0
Wire Range	8 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1978557	9.49	1	374		Power First	2.02	9.49 @ 25
	grainger.ca	GGE4FRC9	11.02499314	1	25		POWER FIRST	0.18	11.02499314 @ 25
	Raptor Supplies	AD7NYH	15.5646855	1	25		POWER FIRST		15.5646855 @ 25
