Walter Tools CNMG120412-NM5 WAK20

B017BJ32WK

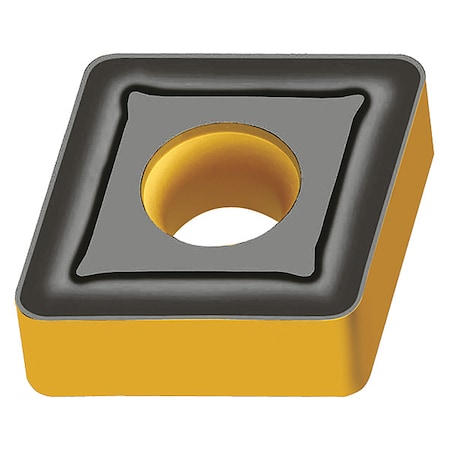

Walter Tools CNMG120412-NM5 WAK20 Carbide Tiger-Tec Negative Indexable Turning Insert, 3/64" Corner Radius, 1/2" IC, 3/16" Thick, 0.047" - 0.197" Depth of Cut (Pack of 10)

Walter Tools CNMG120412-NM5 WAK20 Carbide Tiger-Tec Negative Indexable Turning Insert, 3/64" Corner Radius, 1/2" IC, 3/16" Thick, 0.047" - 0.197" Depth of Cut (Pack of 10)zoom

Attributes

Key Value
ANSI CodeCNMG433-NM5 WAK20
ANSI NumberCNMG433-NM5
Cast Iron (K) Compatibi.Yes
Chip-BreakerYes
Chip-Breaker CodeNM5
Clearance Angle0 Degrees
CoatingCVD
Corner Radius3
Country of Origin (subj.Germany
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length12.90mm
Finish - MachiningTiCN+Al2O3+TiN
For Use WithToolholders and Boring .
GradeWAK20
Hardened (H) Compatibil.No
Included Angle80 Degrees
Inscribed Circle4
Insert ApplicationMedium
Insert CodeCNMG433
Insert Holding TypeStraight Hole
Insert MaterialCarbide
Insert ShapeDiamond
Insert Size433
Insert StyleCNMG
Insert Thickness0.1875"
ISO NumberCNMG120412-NM5 WAK20
ItemDiamond Turning Insert
Manufacturer GradeWAK20
MaterialCarbide
Material - MachiningCarbide
Measurement SystemFractional Inch
Mounting StyleScrew Held
No. of Edges8
Non Ferrous (N) Compati.No
Nose Radius0.047"
Number of Cutting Edges8
Primary Material Applic.Cast Iron
Primary Material Applic.K
RakeNegative
Relief Angle0 Degrees
ShapeRhombic
Stainless (M) Compatibi.No
Steel (P) CompatibilityNo
Super Alloy (S) Compati.No
Thickness3
Workpiece CompatibilityCast Iron (K)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG794784314.491020Walter Valenite0.2214.49 @ 10
