- mpnC20656
- brandname: Cle-Line
- manufacturername: Cle-Line

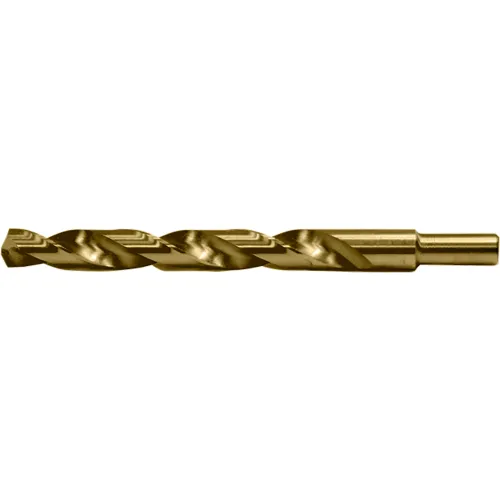

Cle-Line C20656 Cobalt Heavy Duty Jobber Length Drill, Cobalt, Gold Oxide Finish, Reduced Shank, 135-Degree Split Point, 15/32" Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C20656
- Model: C20656
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Manganese . |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.4688 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4688" |
| Diameter (Fraction) | 15/32" |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 15/32 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Size - Decimal In. | 0.4688 in |
| Drill Size - Fraction | 15/32 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 4-5/16 in, 4.3125", 4 5. |
| Flute Length (Metric) | 109.54mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Reduced Shank Drill Bit |
| Material | M42 HSS-Co 8%, HSS-CO, . |
| Material - Machining | Cobalt |
| Maximum Drilling Depth | 1 7/8 in |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Overall Length | 5 3/4 in, 5-3/4 in, 5.7. |
| Overall Length (Metric) | 146.05mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S |
| Series | 1812 |
| Shank Configuration | Reduced |
| Shank Dia. | 3/8 in |
| Shank End Feature | Reduced |
| Shank End Feature Length | 1.0000" |
| Shank Length | 1 in, 1.4375" |
| Shank Length (Metric) | 36.51mm |
| Shank Size | 3/8 in Dia x 1-7/16 in . |
| Shank Size (Metric) | 9.52mm |
| Shank Type | Reduced |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1812 |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | 15/32" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543821 | 12.5 | 6 | 6 | | Cle-Line | | 12.5 @ 6 |
 | usmegastore.com | C20656 | 13.9 | 1 | 6 | | Cle-Line | | 13.9 @ 6 |
 | heavydutydepot.com | C20656 | 13.9 | 8 | 6 | | Cle-Line | | 13.9 @ 8 |
 | MRO Supply | 6123929 | 14.02 | 3 | 6 | | Cle-Line | | 14.02 @ 6 |
 | Zoro | G4941277 | 21.4 | 6 | 6 | 10 | Cle-Line | 0.21 | 21.4 @ 6 |
