- mpnC20657
- brandname: Cle-Line
- manufacturername: Cle-Line

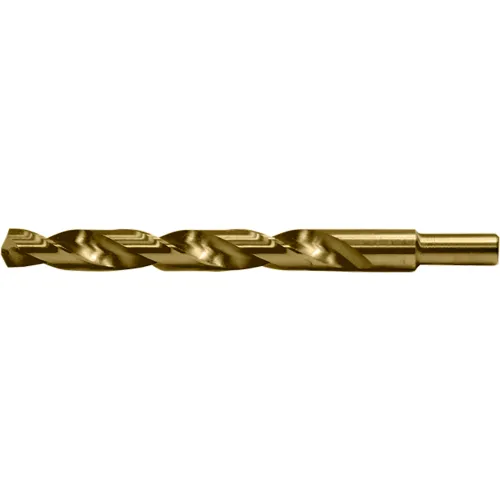

Cle-Line C20657 Cobalt Heavy Duty Jobber Length Drill, Cobalt, Gold Oxide Finish, Reduced Shank, 135-Degree Split Point, 31/64" Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C20657
- Model: C20657
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Manganese . |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.4844 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4844" |
| Diameter (Fraction) | 31/64" |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 31/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Size - Decimal In. | 0.4844 in |
| Drill Size - Fraction | 31/64 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 4.3750", 4-3/8 in, 4 3/. |
| Flute Length (Metric) | 111.13mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Reduced Shank Drill Bit |
| Material | M42 HSS-Co 8%, HSS-CO, . |
| Material - Machining | Cobalt |
| Maximum Drilling Depth | 1 15/16 in |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Overall Length | 5 7/8 in, 5-7/8 in, 5.8. |
| Overall Length (Metric) | 149.22mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S |
| Series | 1812 |
| Shank Configuration | Reduced |
| Shank Dia. | 3/8 in |
| Shank End Feature | Reduced |
| Shank End Feature Length | 1.0000" |
| Shank Length | 1 in, 1.5000" |
| Shank Length (Metric) | 38.10mm |
| Shank Size | 3/8 in Dia x 1-1/2 in L. |
| Shank Size (Metric) | 9.52mm |
| Shank Type | Reduced |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1812 |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | 31/64" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543895 | 13.75 | 6 | 6 | | Cle-Line | | 13.75 @ 6 |
 | usmegastore.com | C20657 | 15.25 | 1 | 6 | | Cle-Line | | 15.25 @ 6 |
 | heavydutydepot.com | C20657 | 15.25 | 7 | 6 | | Cle-Line | | 15.25 @ 7 |
 | MRO Supply | 6123930 | 15.43 | 3 | 6 | | Cle-Line | | 15.43 @ 6 |
 | Zoro | G4941231 | 39.34 | 6 | 6 | 10 | Cle-Line | 0.23 | 39.34 @ 6 |
