- mpnC20661
- brandname: Cle-Line
- manufacturername: Cle-Line

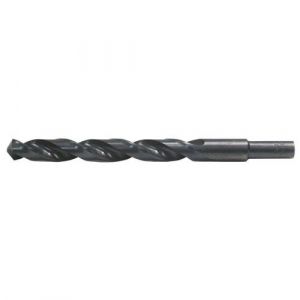

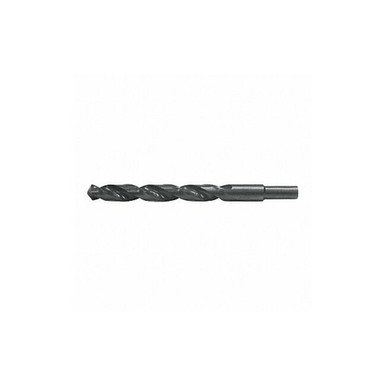

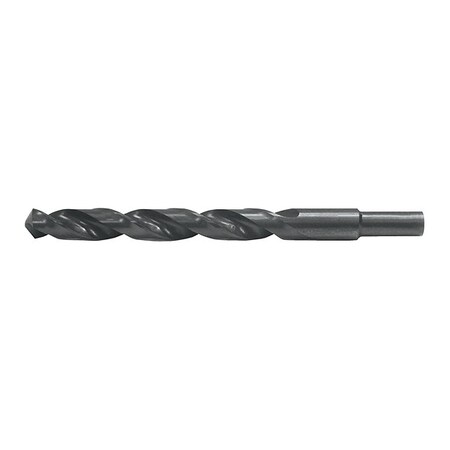

Cle-Line C20661 Heavy Duty Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 135-Degree Split Point, 5/8" Drill Diameter
- Brand: Cle-line
- PartNumber: C20661
- Model: C20661
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Stainless Steel, Tool S. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 42 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.6250 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.6250" |
| Diameter (Fraction) | 5/8" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 5/8 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.625 in |
| Drill Size - Fraction | 5/8 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 5 3/16 in, 5.1875", 5-3. |
| Flute Length (Metric) | 131.76mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 2 1/2 in |
| Measurement System | Fractional Inch |
| Mpn | C20661 |
| Number of Flutes | 2 |
| Overall Length | 7-1/8 in, 7 1/8 in, 7.1. |
| Overall Length (Metric) | 180.97mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1809 |
| Shank Configuration | Reduced |
| Shank Dia. | 3/8 in |
| Shank End Feature | Reduced |
| Shank End Feature Length | 1.0000" |
| Shank Length | 1 in, 1.9375" |
| Shank Length (Metric) | 49.21mm |
| Shank Size | 0.3750", 3/8 in Dia x 1. |
| Shank Size (Metric) | 9.52mm |
| Shank Type | Reduced |
| SKU | ZO-G4958591, C20661 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1809 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 5/8" |
| Type | Heavy Duty |
| UPC | 6.97E+11, 697334206613 |
