Cle-line C22921

mpnC22921
brandname: Cle-Line
manufacturername: Cle-Line

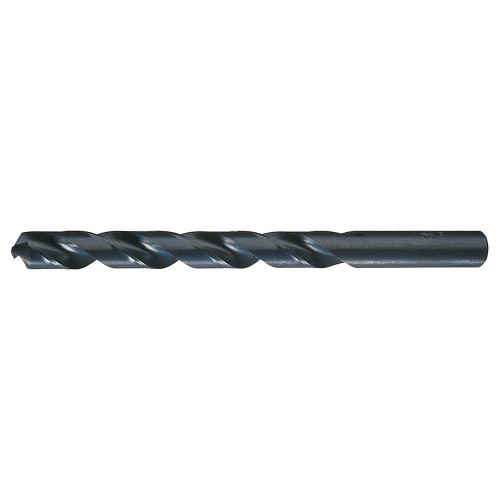

Cle-Line C22921 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 15.75 mm Drill Diameter

Cle-Line C22921 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 15.75 mm Drill Diameter

zoom

Brand: Cle-line
PartNumber: C22921
Model: C22921
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Coolant Fed	Non-Coolant Through
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.6201
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.6201"
Diameter (Metric)	15.75mm
Drill Bit Dimension Type	Metric
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Point Angle	118 Degrees
Drill Bit Size	15.75 mm
Drill Construction	General Purpose
Drill Diameter Measurem.	Metric/Imperial
Drill Diameter Tolerance	+0.0000 in/-0.0012 in
Drill Length Class	Jobber Length
Drill Point Length	0.1863mm
Drill Size - Decimal In.	0.62 in
Drill Size - Metric	15.75 mm
Drill Size System	Metric
Drill Style	Jobber Drill
Finish	Black Oxide
Flute Length	120 mm, 120.00mm, 4.724.
Flute Length (Metric)	120.00mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
Item	Jobber Length Drill Bit
List Number	1899
Material	HSS
Maximum Drilling Depth	3 17/32 in
Measurement System	Metric
Number of Flutes	2
Overall Length	178 mm, 7.0079", 178.00.
Overall Length (Metric)	178.00mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1899
Shank Configuration	Straight
Shank Dia.	15.75 mm
Shank Length	58 mm, 2.2835"
Shank Length (Metric)	58.00mm
Shank Size	0.6201", 15.75 mm Dia x.
Shank Size (Metric)	15.75mm
Shank Type	Straight
SKU	C22921
Standards	DIN 338
Style	1899
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	15.75mm
UPC	6.97E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G4952398	17.69	1	In Stock	10	Cle-Line	0.44	17.69 @ 1
	Megadepot	C22921	17.78	1	In Stock		Cle-Line		17.78 @ 1
	heavydutydepot.com	C22921	17.78	6	In Stock		Cle-Line		17.78 @ 6
	AmazonSC	B00J9H9KBA	19.57	1	In Stock		Cle-line		19.57 @ 1
	Global Industrial	WBB2545187	20.25	1	In Stock		CLE-LINE		20.25 @ 1
	usmegastore.com	C22921	21.11	1	In Stock		Cle-Line		21.11 @ 1
	MRO Supply	6124490	23.93	3	In Stock		Cle-Line		23.93 @ 3
	imsbolt.com	C22921	39.45	1	In Stock		CLE-LINE		39.45 @ 1
