- mpnC23356
- brandname: CLE-LINE
- manufacturername: CLE-LINE

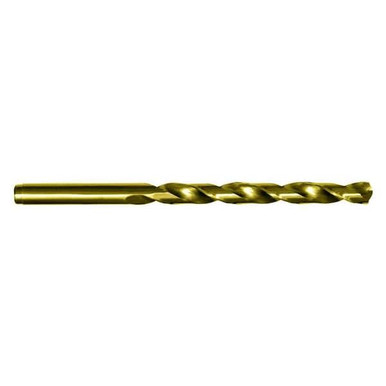

Jobber Drill Bit, Straw/Bronze, 15/64"Size
- Brand: Cle-line
- PartNumber: C23356
- Model: C23356
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Application | For Alloy, Stainless St. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 57 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.2344 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2344" |
| Diameter (Fraction) | 15/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Individual, Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 15/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0485" |
| Drill Size - Decimal In. | 0.2344 in |
| Drill Size - Fraction | 15/64 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 2.6250", 2 5/8 in, 2-5/. |
| Flute Length (Metric) | 66.67mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| List Number | 1802 |
| Material | M42 HSS-Co 8%, Cobalt, . |
| Material - Machining | Cobalt |
| Material Grade - Machin. | High Performance |
| Maximum Drilling Depth | 15/16 in |
| Measurement System | Fractional Inch |
| Mpn | C23356 |
| Number of Flutes | 2 |
| Overall Length | 3.8750", 3 7/8 in, 3-7/. |
| Overall Length (Metric) | 98.42mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split Point, Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 15/64 in |
| Shank Length | 1.2500", 1 1/4 in |
| Shank Length (Metric) | 31.75mm |
| Shank Size | 15/64 in Dia x 1-1/4 in. |
| Shank Size (Metric) | 5.95mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G7178057 |
| Spiral Direction | Right Hand |
| Standards | ASME |
| Style | 1802 |
| SubCategory | Machining |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | 15/64" |
| Type | Heavy Duty |
| UPC | 697334233565 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543110 | 3.1336 | 12 | 12 | | Cle-Line | | 3.1336 @ 12 |
 | Megadepot | C23356 | 3.3 | 1 | 12 | | Cle-Line | | 3.3 @ 12 |
 | heavydutydepot.com | C23356 | 3.3 | 31 | 12 | | Cle-Line | | 3.3 @ 31 |
 | usmegastore.com | C23356 | 3.39 | 1 | 12 | | Cle-Line | | 3.39 @ 12 |
 | MRO Supply | 6124781 | 3.8 | 14 | 12 | | Cle-Line | | 3.8 @ 14 |
 | sustainablesupply.com | C2765405 | 3.82 | 1 | 12 | | Cle-Line | 0.04 | 3.82 @ 12 |
 | Zoro | G7178057 | 3.95 | 1 | 12 | | Cle-Line | 0.04 | 3.95 @ 12 |
| Grainger | 53FP45 | 4.61 | 1 | 12 | | CLE-LINE | | 4.61 @ 12 |
 | simsupply.com | ZO-G7178057 | 10.93 | 1 | 57 | | Cle-Line | | 10.93 @ 12 |
