- mpnC23370
- brandname: Cle-Line
- manufacturername: Cle-Line

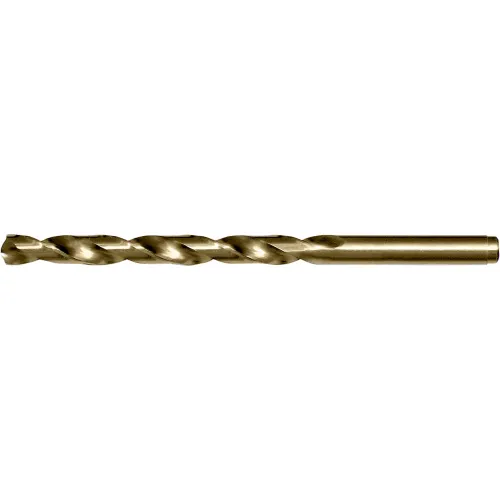

CLE-LINE Jobber Drill,29/64",Cobalt C23370
- Brand: Cle-line
- PartNumber: C23370
- Model: C23370
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.4531 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4531" |
| Diameter (Fraction) | 29/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 29/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0938" |
| Drill Size - Decimal In. | 0.4531 in |
| Drill Size - Fraction | 29/64 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Flute Length | 4 3/16 in, 4.1875", 4-3. |
| Flute Length (Metric) | 106.36mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | M42 HSS-Co 8%, HSS-CO, . |
| Maximum Drilling Depth | 3 1/8 in |
| Number of Flutes | 2 |
| Overall Length | 5 5/8 in, 5-5/8 in, 5.6. |
| Overall Length (Metric) | 142.88mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 29/64 in |
| Shank Length | 1 7/16 in, 1.4375" |
| Shank Length (Metric) | 36.51mm |
| Shank Size | 0.4531", 29/64 in Dia x. |
| Shank Size (Metric) | 11.51mm |
| Shank Type | Straight |
| Style | 1802 |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | 29/64" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C23370 | 11.62 | 1 | 6 | | Cle-Line | | 11.62 @ 6 |
 | usmegastore.com | C23370 | 11.82 | 1 | 6 | | Cle-Line | | 11.82 @ 6 |
 | heavydutydepot.com | C23370 | 11.9 | 9 | 6 | | Cle-Line | | 11.9 @ 9 |
 | Global Industrial | WBB2543395 | 12.25 | 6 | 6 | | Cle-Line | | 12.25 @ 6 |
 | MRO Supply | 6124795 | 14.03 | 3 | 6 | | Cle-Line | | 14.03 @ 6 |
 | Zoro | G7274051 | 14.05 | 1 | 367 | | Cle-Line | 0.19 | 14.05 @ 6 |
 | sustainablesupply.com | C2765516 | 14.09 | 1 | 6 | | Cle-Line | 0.19 | 14.09 @ 6 |
