Cle-line C23373

mpnC23373
brandname: CLE-LINE
manufacturername: CLE-LINE

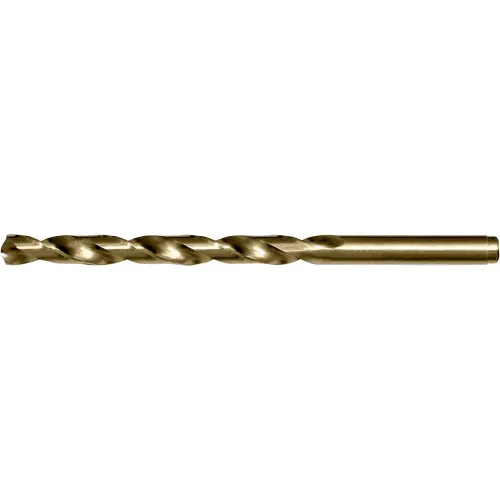

Jobber Drill Bit, Straw/Bronze, 1/2" Size

Jobber Drill Bit, Straw/Bronze, 1/2" Size

zoom

Brand: Cle-line
PartNumber: C23373
Model: C23373
PackageQuantity: 1
Manufacturer: CLE-LINE
Label: CLE-LINE

Attributes

Key	Value
Coolant Fed	Non-Coolant Through
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8%
Decimal Equivalent	0.5000
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.5000"
Diameter (Fraction)	1/2"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Straw/Bronze
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Size	1/2 in
Drill Construction	Heavy-Duty
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in/-0.0010 in
Drill Length Class	Jobber Length
Drill Point Length	0.1036"
Drill Size - Decimal In.	0.5 in
Drill Size - Fraction	1/2 in
Drill Size System	Fractional
Drill Style	Jobber Drill
Finish	Straw Oxide
Flute Length	4-1/2 in, 4.5000", 4 1/.
Flute Length (Metric)	114.30mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Jobber Length Drill Bit
Material	M42 HSS-Co 8%, Cobalt, .
Maximum Drilling Depth	3 3/8 in
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Series	1802
Shank Configuration	Straight
Shank Dia.	1/2 in
Shank Length	1 1/2 in, 1.5000"
Shank Length (Metric)	38.10mm
Shank Size	0.5000", 1/2 in Dia x 1.
Shank Size (Metric)	12.70mm
Shank Type	Straight
Style	1802
Surface Condition	Straw
Through Coolant (Yes/No)	No
Tool Size	1/2"
Type	Heavy Duty

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Grainger	53FP31	11.2	1	253	0	CLE-LINE		11.2 @ 1
	Megadepot	C23373	13.32	1	In Stock		Cle-Line		13.32 @ 1
	usmegastore.com	C23373	13.4	1	In Stock		Cle-Line		13.4 @ 1
	heavydutydepot.com	C23373	13.4	8	In Stock		Cle-Line		13.4 @ 8
	Global Industrial	WBB2543465	14.0	6	In Stock		Cle-Line		14.0 @ 6
	Zoro	G7177908	16.09	1	714		Cle-Line	0.25	16.09 @ 1
	MRO Supply	6124798	16.1	3	In Stock		Cle-Line		16.1 @ 3
	sustainablesupply.com	C2765534	17.17	1	In Stock		Cle-Line	0.25	17.17 @ 1
