- mpnC23408
- brandname: Cle-Line
- manufacturername: Cle-Line

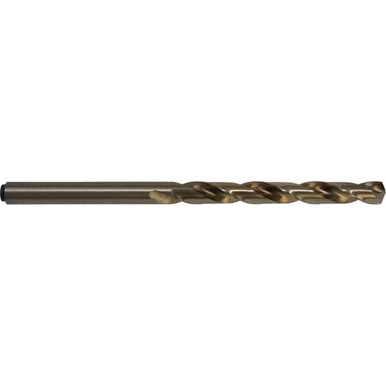

Cle-Line C23408 Cobalt Heavy Duty Jobber Length Drill, Cobalt, Gold Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 26 (Pack of 12)
- Brand: Cle-Line
- PartNumber: C23408
- Model: C23408
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Application | For Alloy, Stainless St. |
| Brand | Cle-Line |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 4 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.1470 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1470" |
| Diameter (Wire/Let) | 26 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #26 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0304 in |
| Drill Size - Decimal In. | 0.147 in |
| Drill Size - Wire | #26 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 1 7/8 in, 1-7/8 in, 1.8. |
| Flute Length (Metric) | 47.63mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Item? | 53PP58 |
| List Number | 1802 |
| Material | M42 HSS-Co 8%, Cobalt, . |
| Material - Machining | Cobalt |
| Material Grade - Machin. | High Performance |
| Maximum Drilling Depth | 37/64 in |
| Measurement System | Wire |
| Mfr. Model? | C23408 |
| Mpn | C23408 |
| Number of Flutes | 2 |
| Overall Length | 3.0000", 3 in |
| Overall Length (Metric) | 76.20mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split Point, Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S, H; K; N;. |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 9/64 in |
| Shank Diameter | 9/64 in |
| Shank Length | 1.1250", 1 1/8 in, 1-1/. |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 0.147 in Dia x 1.125 in. |
| Shank Size (Metric) | 3.73mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G6375742 |
| Spiral Direction | Right Hand |
| Standards | ASME |
| Style | 1802 |
| SubCategory | Machining |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | #26 |
| Type | Heavy Duty |
| UNSPSC | 27112801 |
| UPC | 697334234081 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543456 | 2.04 | 12 | 12 | | Cle-Line | | 2.04 @ 12 |
 | Megadepot | C23408 | 2.15 | 1 | 12 | | Cle-Line | | 2.15 @ 12 |
 | heavydutydepot.com | C23408 | 2.15 | 47 | 12 | | Cle-Line | | 2.15 @ 47 |
 | usmegastore.com | C23408 | 2.18 | 1 | 12 | | Cle-Line | | 2.18 @ 12 |
 | Zoro | G6375742 | 2.31 | 1 | 95 | | Cle-Line | 0.1 | 2.31 @ 12 |
 | MRO Supply | 6124833 | 2.43 | In Stock | 12 | | Cle-Line | | 2.43 @ 21 |
 | sustainablesupply.com | C2765392 | 2.81 | 1 | 12 | | Cle-Line | 0.01 | 2.81 @ 12 |
| Grainger | 53PP58 | 3.71 | 1 | 12 | | CLE-LINE | | 3.71 @ 12 |
 | simsupply.com | ZO-G6375742 | 8.99 | 1 | 12 | | Cle-Line | | 8.99 @ 12 |
| AmazonSC | B00J9EWJ7A | 30.48 | 1 | 12 | | Cle-line | | 30.48 @ 12 |
