- mpnC23467
- brandname: Cle-Line
- manufacturername: Cle-Line

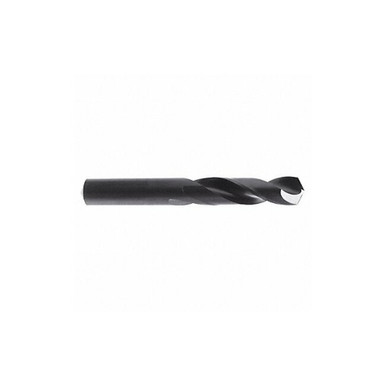

Screw Mach Drill, HSS, Blk Oxide, 11/64 in
- Brand: Cle-line
- PartNumber: C23467
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 197 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1719 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1719" |
| Diameter (Fraction) | 11/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 11/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0356 in |
| Drill Size - Decimal In. | 0.1719 in |
| Drill Size - Fraction | 11/64 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Finish | Black Oxide |
| Flute Length | 1.0625", 1-1/16 in, 1 1. |
| Flute Length (Metric) | 26.99mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1896 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 1/16 in |
| Measurement System | Imperial |
| Mpn | C23467 |
| Number of Flutes | 2 |
| Overall Length | 2-1/8 in, 2.1250", 2 1/. |
| Overall Length (Metric) | 53.97mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 1896 |
| Shank Configuration | Straight |
| Shank Dia. | 11/64 in |
| Shank Length | 1.0625", 1 1/16 in |
| Shank Length (Metric) | 26.99mm |
| Shank Size | 11/64 in Dia x 1-1/16 i. |
| Shank Size (Metric) | 4.37mm |
| Shank Type | Straight |
| Sizes Included | 11/64" |
| SKU | ZO-G1674382 |
| Style | 1896 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 11/64" |
| Type | General Purpose Heavy D. |
| UPC | 697334234678 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544516 | 1.23 | 12 | 12 | | Cle-Line | | 1.23 @ 12 |
 | Megadepot | C23467 | 1.43 | 1 | 12 | | Cle-Line | | 1.43 @ 12 |
 | usmegastore.com | C23467 | 1.45 | 1 | 12 | | Cle-Line | | 1.45 @ 12 |
 | heavydutydepot.com | C23467 | 1.45 | 69 | 12 | | Cle-Line | | 1.45 @ 69 |
 | Zoro | G1674382 | 1.49 | 1 | 312 | | Cle-Line | 0.1 | 1.49 @ 12 |
 | MRO Supply | 6124866 | 1.5 | 34 | 12 | | Cle-Line | | 1.5 @ 34 |
 | sustainablesupply.com | C1465268 | 1.9 | 1 | 12 | | Cle-Line | 0.1 | 1.9 @ 12 |
 | Raptor Supplies | AE7YFB | 1.988883 | 1 | 12 | | CLE-LINE | | 1.988883 @ 12 |
 | simsupply.com | ZO-G1674382 | 7.81 | 1 | 197 | | Cle-Line | | 7.81 @ 12 |
