- mpnC23474
- brandname: CLE-LINE
- manufacturername: CLE-LINE

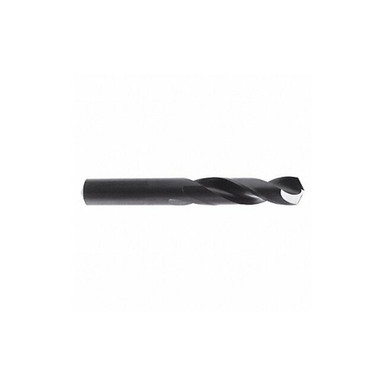

Screw Mach Drill, Hss, Blk Oxide, 9/32 in
- Brand: Cle-line
- PartNumber: C23474
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 197 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2812 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2812" |
| Diameter (Fraction) | 9/32" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 9/32 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0582 in |
| Drill Size - Decimal In. | 0.2812 in |
| Drill Size - Fraction | 9/32 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Finish | Black Oxide |
| Flute Length | 1 1/2 in, 1-1/2 in, 1.5. |
| Flute Length (Metric) | 38.10mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1896 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 1/2 in |
| Measurement System | Imperial |
| Mpn | C23474 |
| Number of Flutes | 2 |
| Overall Length | 2-11/16 in, 2 11/16 in,. |
| Overall Length (Metric) | 68.26mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 1896 |
| Shank Configuration | Straight |
| Shank Dia. | 9/32 in |
| Shank Length | 1 3/16 in, 1.1875" |
| Shank Length (Metric) | 30.16mm |
| Shank Size | 0.2813", 9/32 in Dia x . |
| Shank Size (Metric) | 7.15mm |
| Shank Type | Straight |
| Sizes Included | 9/32" |
| SKU | ZO-G3008275 |
| Style | 1896 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 9/32" |
| Type | General Purpose Heavy D. |
| UPC | 697334234746 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544594 | 1.9842 | 12 | 12 | | Cle-Line | | 1.9842 @ 12 |
 | Megadepot | C23474 | 2.33 | 1 | 12 | | Cle-Line | | 2.33 @ 12 |
 | usmegastore.com | C23474 | 2.33 | 1 | 12 | | Cle-Line | | 2.33 @ 12 |
 | heavydutydepot.com | C23474 | 2.36 | 43 | 12 | | Cle-Line | | 2.36 @ 43 |
 | MRO Supply | 6124873 | 2.42 | In Stock | 12 | | Cle-Line | | 2.42 @ 21 |
 | Zoro | G3008275 | 2.55 | 1 | 368 | | Cle-Line | 0.05 | 2.55 @ 12 |
 | Raptor Supplies | AD6UBU | 3.374397 | 1 | 12 | | CLE-LINE | | 3.374397 @ 12 |
 | sustainablesupply.com | C1465275 | 3.76 | 1 | 12 | | Cle-Line | 0.05 | 3.76 @ 12 |
 | simsupply.com | ZO-G3008275 | 9.04 | 1 | 197 | | Cle-Line | | 9.04 @ 12 |
