- mpnSH-N-550-DF-BBX
- brandname: Coxreels
- manufacturername: Coxreels

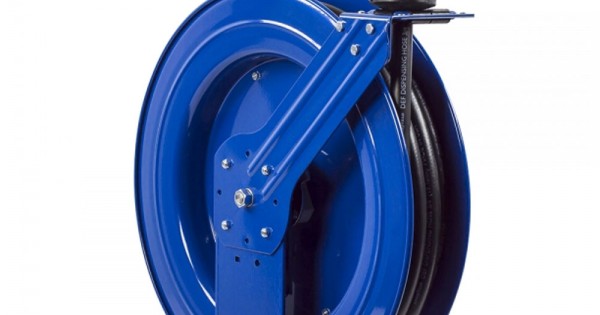

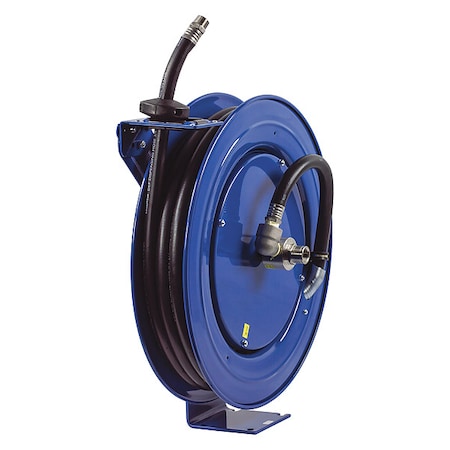

Coxreels SH-N-550-DF-BBX Spring Rewind Hose Reel for DEF Applications: 3/4" I.D, 50' Hose, 300 PSI
- Brand: Coxreels
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Coxreels
- Label: Coxreels
Attributes
| Key | Value |
|---|
| Application | Vehicle Refueling, Tank. |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Bearings | Permanently Lubricated |
| Brand | COXREELS |
| Corrosion-Resistant | Yes |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Drive Type | Spring Return |
| Drive Type - Hose Reels | Spring Return |
| Duty Rating | Heavy Duty |
| Enclosed | No |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | 1 in Solid Steel Axle, . |
| Finish - Hose Reels | Powder Coated |
| Fitting Size | 3/4 in x 3/4 in |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Ft | 50' |
| Hose Capacity | 50 ft (3/4 in I.D.) |
| Hose Color | Black |
| Hose Cover Material | EPDM |
| Hose End Configuration | 3/4 in MNPT |
| Hose Ends | 3/4 in (M)NPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 3/4 in |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 3/4 in |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 3/4 in |
| Hose Length | 50 ft |
| Hose Material | EPDM |
| Hose Outlet | 3/4 in (M)NPT |
| Hose Outside Dia. | 1-1/16 in, 1 1/16 in |
| Hose Reel Primary Appli. | DEF |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Tube Material | EPDM |
| Housing Material | Steel |
| I.D. | 3/4" |
| Includes | Hose, Hose Guard, Hose . |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Item | Spring Return Hose Reel |
| Item? | 29RD13 |
| Latch | Locking |
| Latch Type | Locking |
| Max. Pressure | 300 psi |
| Max. Temp. | 150 Degrees F |
| Maximum Operating Press. | 300 psi |
| Maximum Operating Tempe. | 150 Degrees F, 150 ?F |
| Mfr. Model? | SH-N-550-DF-BBX |
| Minimum Operating Tempe. | -40 ?F, -40 Degrees F |
| Mount Base Height | 6 in |
| Mount Base Width | 6 in |
| Mount Hole Diameter | 1/2 in |
| Mounting | Bench and Vehicles, Cei. |
| Mounting Hole Center to. | 5 in |
| Mounting Hole Center to. | 4 in |
| Number of Guide Arms | Single Arm |
| Number of Mount Holes | 4 |
| O.D. | 1 1/8" |
| Overall Dimensions | 24 in L x 9 7/8 in W x . |
| Overall Height | 25-1/2 in, 25 1/2 in |
| Overall Length | 24 in |
| Overall Width | 9 7/8 in, 9-7/8 in |
| Pedestal Type | Single Pedestal |
| Pressure | 300 |
| Promotion Restriction | Not eligible for promot. |
| Psi | 4 |
| Reel Color | Blue |
| Reel Diameter | 24 in |
| Reel Finish | Powder Coated |
| Reel Inlet | 3/4 in (F)NPT |
| Reel Material | Steel |
| Reel Width | 9 7/8 in, 9-7/8 in |
| Seal Type | Viton(R) |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Standards | CE |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/4 in |
| Swivel Inlet Thread Size | 3/4 in - 14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Stainless Steel |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 3/4 in |
| Swivel Outlet Thread Si. | 3/4 in - 14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| UNSPSC | 40142121 |
| Weight | 69 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1173509 | 1023.96 | 1 | In Stock | 26 | Coxreels | 76.0 | 1023.96 @ 1 |
 | wylaco.com | SH-N-550-DF-BBX | 1061.24 | 1 | In Stock | 28 | COXREELS | | 1061.24 @ 1 |
 | MRO Supply | 2517228 | 1118.27 | 1 | In Stock | | CoxReels | | 1118.27 @ 1 |
 | intlairtool.com | SH-N-550-DF-BBX | 1372.0 | 1 | In Stock | 49 | Coxreels | 76.0 | 1372.0 @ 1 |
| Grainger | 29RD13 | 1450.43 | 1 | In Stock | | COXREELS | 69.0 | 1450.43 @ 1 |
