- mpn20Q60R56
- brandname: Dodge
- manufacturername: Dodge

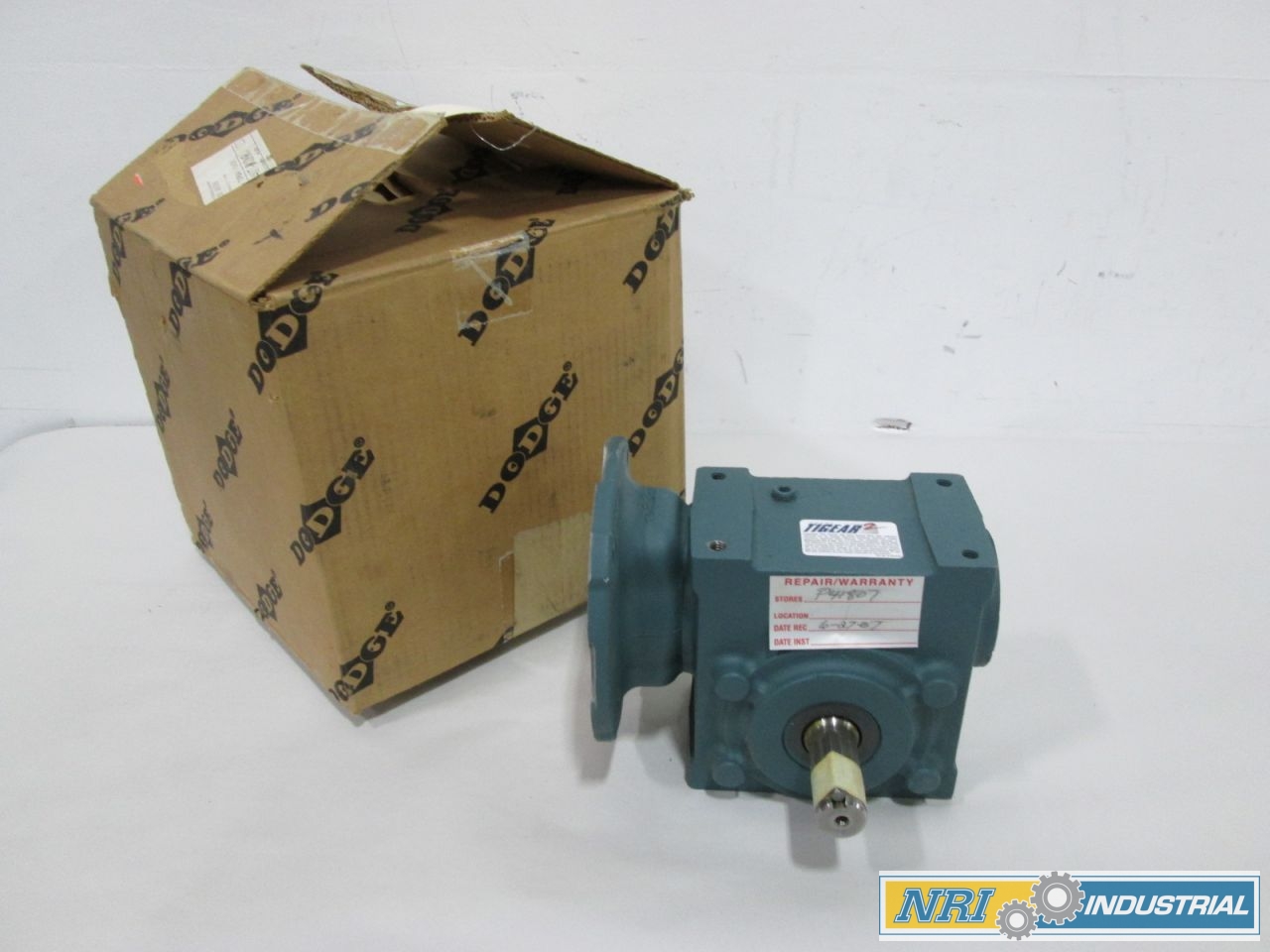

Dodge - 20Q60R56 TIGEAR-2 Reducer
- Brand: Dodge
- PartNumber: 20Q60R56
- PackageQuantity: 1
- Manufacturer: Dodge
- Label: Dodge
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.2400 in, 56.896 mm |
| Case size | 20 |
| Center distance (in) | 2 in, Center distance (. |
| Center to end of shaft . | 4.6900 in, 119.126 mm |
| Finish | Green |
| Horsepower rating input | 0.5600 hp, 0.418 kW |
| Horsepower rating output | 0.3600 hp, 0.268 kW |
| Housing material | Cast iron |
| Input | 56C flange |
| Input flange | 56C |
| Input HP | 0.56 |
| Input style | Quill |
| Lubrication type | PAG, standard temperatu. |
| Material | Class 30 grey iron |
| Max RPM | 29 rpm |
| Motor compatibility | NEMA motor, 56C frame |
| Mounting bolt pattern l. | 5.0000 in, 127.0 mm |
| Mounting bolt pattern w. | 2.8800 in, 73.152 mm |
| Nominal ratio | 60 |
| Output | Right side solid output. |
| Output bore/shaft diame. | 1 in |
| Output horse power | 0.36 |
| Output shaft | Right (solid B) |
| Output shaft center to . | 5.0000 in, 127.0 mm |
| Output style | Right |
| Overhung load | 1560 lbf, 6939.226 N |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 767 in/lb, 767.0 in/lb |
| Ratio | 60 to 1 |
| Seal type | Single-lip contact |
| Shaft diameter output | 1.0000 in, 25.4 mm |
| Shaft length output | 2.1100 in, 53.594 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 0.9600 hp, 0.716 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NRI Industrial | D319436 | 352.25 | 1 | In Stock | | DODGE | | 352.25 @ 1 |
 | Walker Industrial | 20Q60R56 | 671.16 | 1 | In Stock | | Dodge | | 671.16 @ 1 |
 | MRO Supply | 141889 | 760.4 | 1 | In Stock | | Dodge | | 760.4 @ 1 |
 | Purvis | 20Q60R56 | 823.48 | 1 | In Stock | | Dodge | | 823.48 @ 1 |
| kirbyrisk.com | 2457185 | 906.81 | 1 | In Stock | | Dodge | | 906.81 @ 1 |
| cbtcompany.com | 20Q60R56 | 958.49 | 1 | In Stock | | Dodge | | 958.49 @ 1 |
