GPI P-200H-2UR

B009AJBLAU

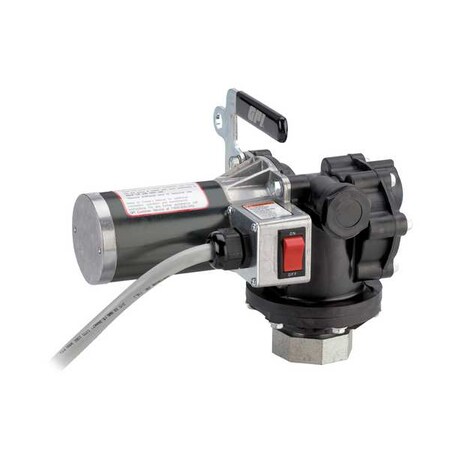

GPI 118000-2, P-200H-2UR Plastic Chemical Pump, 12-VDC 12 GPM

GPI 118000-2, P-200H-2UR Plastic Chemical Pump, 12-VDC 12 GPMzoom

Attributes

Key Value
Adapter MaterialAluminum
Adapter TypeSpin Collar
Agency ComplianceCSA
ApplicationAgricultural Chemicals .
BrandGpi
Compatible ChemicalsAutomatic Transmission .
Cord Length15 ft
Country of Origin (subj.United States
Current Stock3
DEF CompatibleNo
Diesel Exhaust Fluid Co.No
Discharge Connection Ty.NPT
Discharge Tube Outlet ID1 in
Discharge Tube Outlet I.1"
Discharge Tube Outlet OD1 in
Duty CycleIntermittent
Explosion ProofNo
Features12 V(dc), 15 ft (4.6 m).
Food GradeNo
For Container Size55 gal, 275 gal, 330 gal
For Container TypeDrum, Tote
For Media TypeAutomatic Transmission .
For Use WithGPI 118000-2, P-200H-2UR
Full Load Amps15.0
Gasket MaterialFluorocarbon
Gear LubeNT
GPM8
GreaseNT
Height Above Container11 in
Housing MaterialPolyethylene
Housing Material - PumpsPolyethylene
HP1/3
Includes15 ft Power Cord
Includes Bung AdapterNo
Includes Discharge HoseNo
Includes NozzleNo
Includes Suction TubeYes
Inlet Size1" NPT
International ShippingNo
ItemElectric Operated Drum .
Manufacturers Warranty .2 yr.
Max. Flow GPM8-12 gpm
Max. Flow Rate8 gpm
Max. Fluid Temp.120 Degrees F
Max. GPM for Oil8
Max. GPM for Water8
Max. Head18 ft.
Max. Head - Pumps18 ft
Max. Head Pressure16 psi
Max. Liquid Temp.120 Degrees F
Max. Oil Flow8 gpm
Max. Outlet Pressure6 psi
Max. Pressure6 psi
Max. Temp.120 Degrees F
Max. Viscosity450 cps
MeteredNo
Min. Fluid Temp.-20 Degrees F
Motor EnclosureTENV
Motor HP1/3 hp
Motor RPM3,500 RPM
Motor TypeElectric DC
MpnP-200H-2UR
Not Recommended Chemica.Ammonia (Liquids), Ammo.
Number of Phases1
Outlet Size1" NPT
Overall Length11 in
Power SourceElectric
Pump Body MaterialPolyethylene
Pump Connection ID1 in
Pump Connection OD1 1/4 in
Pump Connection TypeNPT
Rated Voltage12V DC
RPM3500
Runs DryYes
Seal MaterialNBR
Self-PrimingYes
SeriesChemical
SKUZO-G3173475
StandardsCSA Certified
SubCategoryPumps/Drum Pumps
Suction Tube TypePlastic Adjustable
TypeAgricultural Chemical
UPC031401118001
Variable SpeedNo
Voltage12VDC
Wetted Materials316 Stainless Steel, PB.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3173475838.9912Gpi17.4838.99 @ 1
thumbzoomsustainablesupply.comC1741845847.121In StockGPI17.4847.12 @ 1
thumbzoomsimsupply.comZO-G3173475946.7713Gpi946.77 @ 1
thumbzoomRaptor SuppliesAF2RHE1064.9015911In StockGPI1064.901591 @ 1
