Hubbell DS420GY

B00N3QN320

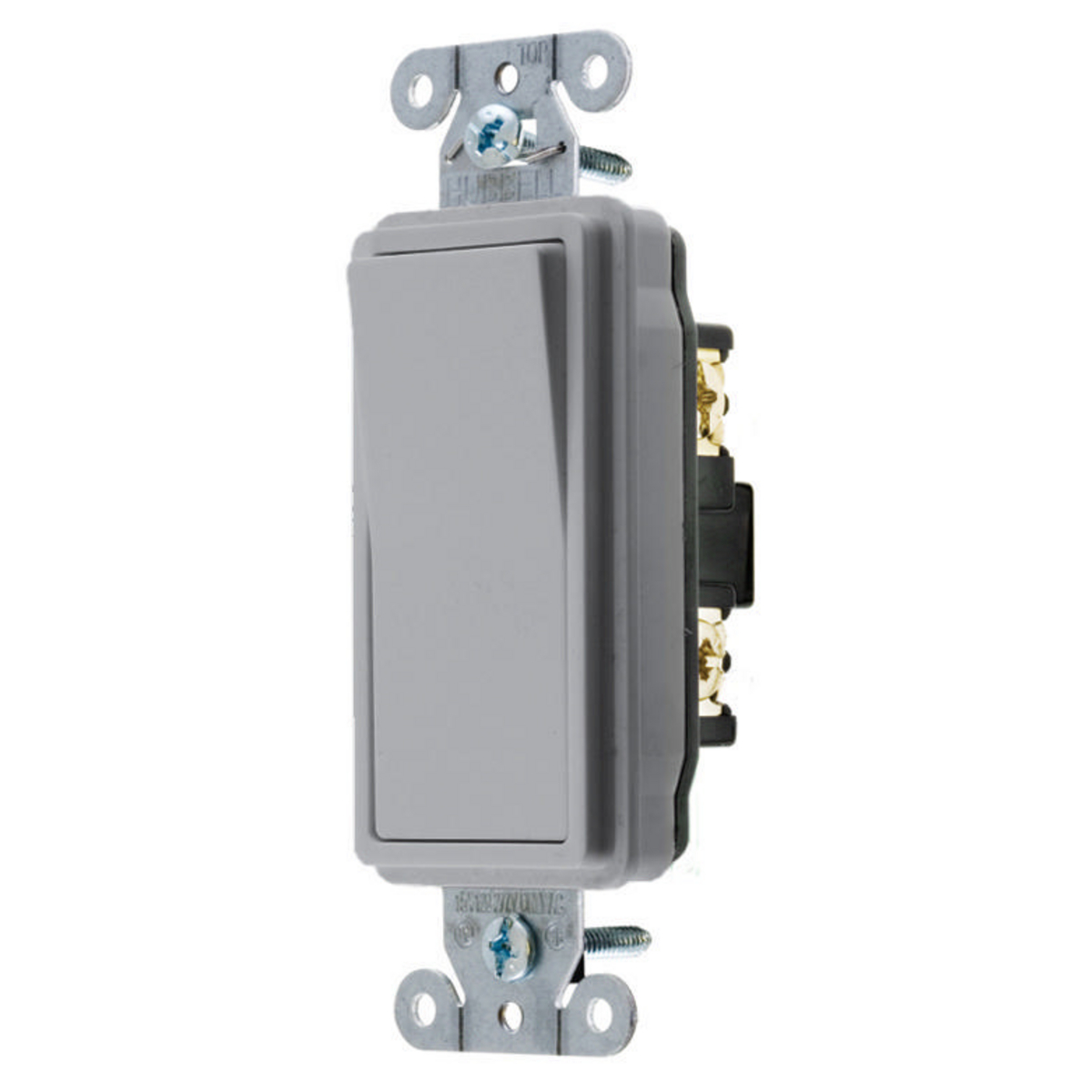

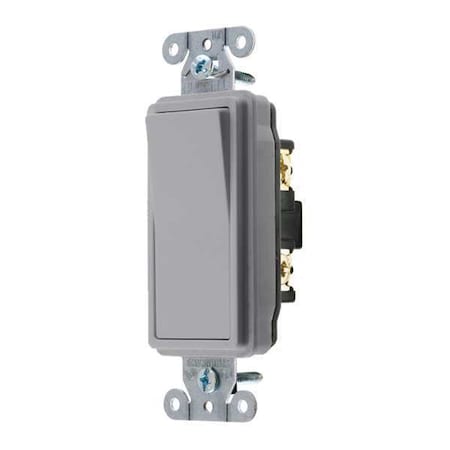

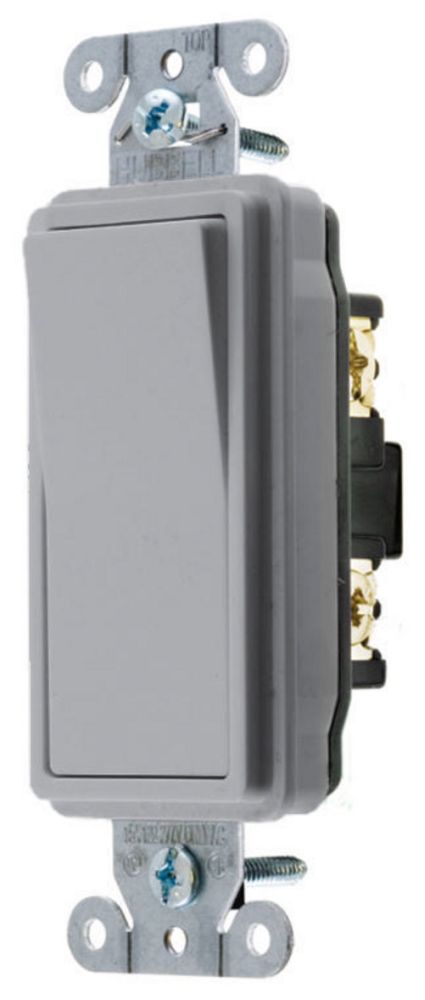

Hubbell DS420GY Decorator Switch, 4 Way, 20 amp, 120/277V, Gray

Hubbell DS420GY Decorator Switch, 4 Way, 20 amp, 120/277V, Grayzoom

Attributes

Key Value
ActionDPDT
ActuatorRocker
Amperage Rating20A, 20
Amps AC20 A
AntimicrobialNo
Application EnvironmentCommercial
ApprovalsCSA, UL
AWG Range#14 AWG to #10 AWG
ColorGray
Color FamilyGray
ConnectionScrew Terminal
Contact Configuration2 Position
Country of OriginCN - China
Country of Origin (subj.China
Current20 A
Current Rating20 A
Description/Special Fea.Quiet Switch
Dimensions4.277 in H x 1.728 in W.
ECCNEAR99
Electrical Ratings20 A at 120/277 VAC
Environmental Conditions-40 to 75, -40 to 75 de.
Family SeriesHubbell Switches
FeaturesAutomatic Self-Groundin.
For MarketCommercial Grade
GradeSpecification
Gross Weight0.2 lbs
GroundingSelf, Grounded
Height1.67 in.
Horsepower Rating1 hp
Housing MaterialThermoplastic
HP @ 120 VAC1 hp
HP @ 240 VAC2 hp
IlluminatedNo
ItemWall Switch
Item NumberDS420GY
Length4.28 in.
LockingNo
Locking StyleNot Applicable
ManufacturerHubbell
Manufacturer Part NumberDS420GY
MarketCommercial
MaterialComposite/Thermoplastic.
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size14 AWG
MountingThreaded
Mounting Screw TypeThread Cleaning Captive
Net Weight0 lbs
No. of Poles2
Number of Poles2
Number of Positions2
Number of Switches1
Operating Cycles50000
OperatorRocker
Operator ColorGray
Overall Height1.67 in
Overall Width1.73 in
Power Rating5540
Rated HP1
Rated Voltage120-277V ac
Resistance PropertiesImpact Resistant
SeriesDecorator
StandardUL Listed
StandardsUL/CSA
StyleFour Way
Switch ConfigurationFour Way
Switch FunctionMaintained
Switch StyleRocker, Rocker Switch
Switch Type4-Way
Temperature-40-167 ?F
Terminal TypeBack/Side Wire, Back/Si.
TypeRocker/Decorator, 4-Way.
UNSPSC39122226
Voltage120 VAC, 277 VAC
Voltage AC120 to 277
Voltage Rating120 to 277, 120/277V AC
Width1.73 in.
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wire Range#14 to #10 AWG Solid an.
WiringBack and Side Wired
Wiring MethodBack and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comDS420GY19.071In StockHUBBELL19.07 @ 1
thumbzoomZoroG457172919.491In Stock11Hubbell0.219.49 @ 1
thumbzoomcbtcompany.comDS420GY20.541In StockHubbell Wiring Device-Kellems20.54 @ 1
Grainger49YL6545.91In Stock15HUBBELL WIRING DEVICE-KELLEMS45.9 @ 1
kirbyrisk.com241553246.391In StockHubbell46.39 @ 1
Onlinecomponents.comDS420GY51.471In StockHubbell51.47 @ 1
thumbzoomsustainablesupply.comC278414260.221In StockHubbell0.260.22 @ 1
thumbzoomMRO Supply101742964.641In Stock9Hubbell Wiring0.264.64 @ 1
Graybar2520323066.89761In StockHubbell Wiring Device - Kellems66.8976 @ 1
thumbzoomstandardelectricsupply.com220797867.291In StockHubbell67.29 @ 1
thumbzoomGalcoDS420GY-HBBL69.261In StockHubbell0.269.26 @ 1
Newark93Y410292.791In StockHUBBELL WIRING DEVICES92.79 @ 1
